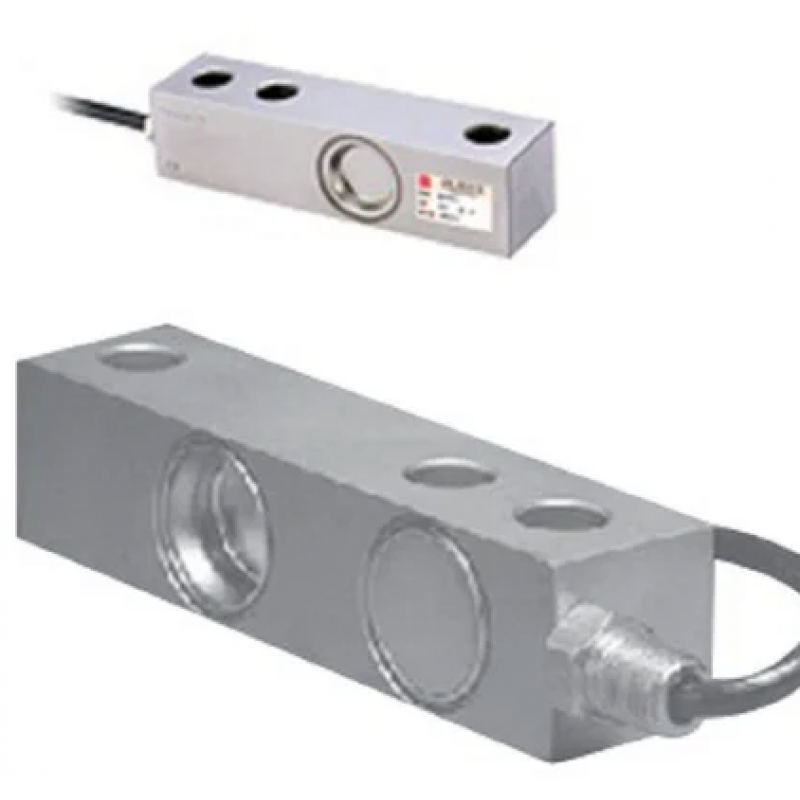

Shear Beam Load Cell
Product Details:

Type	Single Ended Shear Beam
Capacity	5000 Kg
Material	Stainless Steel
Ingress Protection	IP68
Load Cell Certifications	OIML
Output Sensitivity(FS)	2.0 +/- 0.002 mV/V
Creep Error (30 minutes)	+/-0.03% F.SO
Accuracy Class	OIML R60 C3
Temperature Effect on Zero	+/-0.002 FS/DegC
Temperature Effect on Output	+/-0.001 FS/DegC
Zero balance	+/- 1% FS
Maximum Safe Overload	150% FS
Recommended Excitation Voltage	5 to 15V DC
Insulation resistance at 50V DC	>= 1000 M Ohm
Compensated Temperature Range	-10 to +40 Deg C
Operating Temperatue Range	-20 to +70 Deg C
Load Cell Intervals (nLC)/Divisions	3000

We are actively engaged in manufacturing and supplying quality high amount of Beam Load Cells.
Features
Hermetically sealed to IP68
Specially designed for harsh environment
APPLICATIONS
Low profile platforms
Pallet truck weighing
Harsh environment weighing
Food industry weighing
