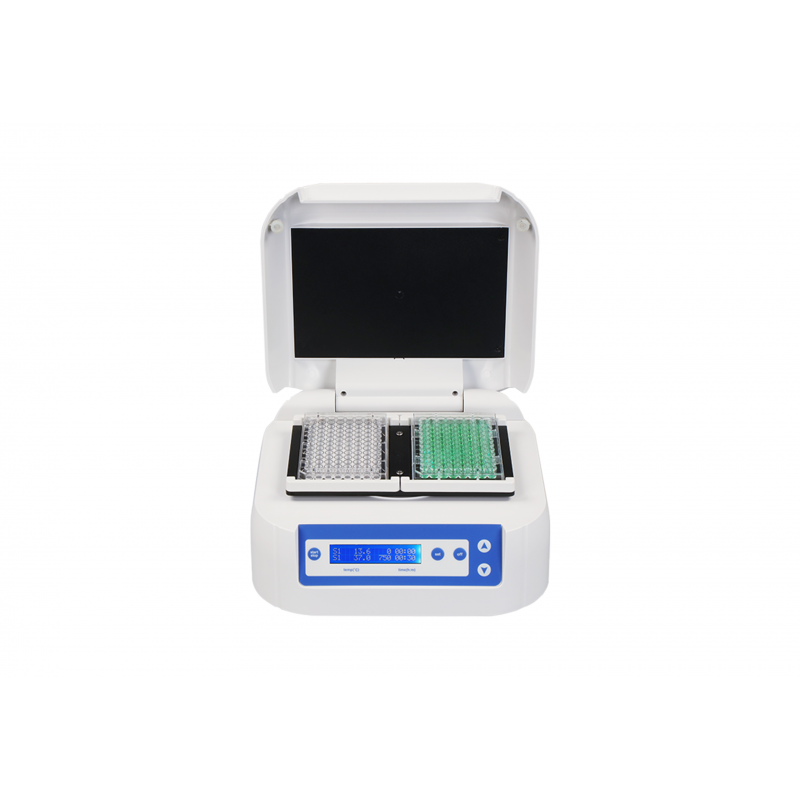

Thermo Shaker Incubator for Plates — MB100-2A

MB100-2A is designed for shaking 1-2 standard 96 well plates in the thermostat mode. MB100-2A has incubation and shaking functions. A distinctive feature of MB100-2A is two-side heating of microtest plates that allows achieving exact correspondence of the set and actual temperature in wells of the microtest plates.

MB100-2A is formed by microprocessing technology combined with PID control method. It has the characteristics of small size, light weight, low noise; LCD display of temperature, oscillation and time, beautiful appearance and simple operation. It is mainly used for ELISA plate (96-well/384-well plate), cell culture plate (24-well plate, 48-well plate, 96-well plate, etc.) to mix or incubate cells at appropriate temperature.

Features :

• LCD display, man-machine friendly touch operation interface

• There is a function of heating up and down the microplate, so that each well of the microplate can be heated evenly

• Microprocessor controls temperature, speed and time, with good temperature control linearity, accurate oscillation speed and small fluctuation

• Simultaneous display of set and actual temperature, time and oscillation speed parameters

• It can hold 2 standard ELISA plates and microplates, and an audible alarm signal will be issued after the program is finished.

• DC brushless motor drive, long life, maintenance-free

• Multiple safety protection functions. Conforms to CE safety standard, safe and reliable

Specifications :

• Model
  MB100-2A
• Temp. control range
  RT+5 °C~70 °C
• Timer range
  1 min～99 h59 min
• Temp. control accuracy
  ±0.5 ℃
• Display accuracy
  ±0.1 ℃
• Shaking speed
  100～1200 rpm
• Mixing orbit
  2 mm
• Heating time (25 °C to 70 °C)
  ≤20 min
• Platform capacity
  2 plates
• Dimension (W×D×H) mm
  280×270×150 mm
• Weight
  6.5 kg
