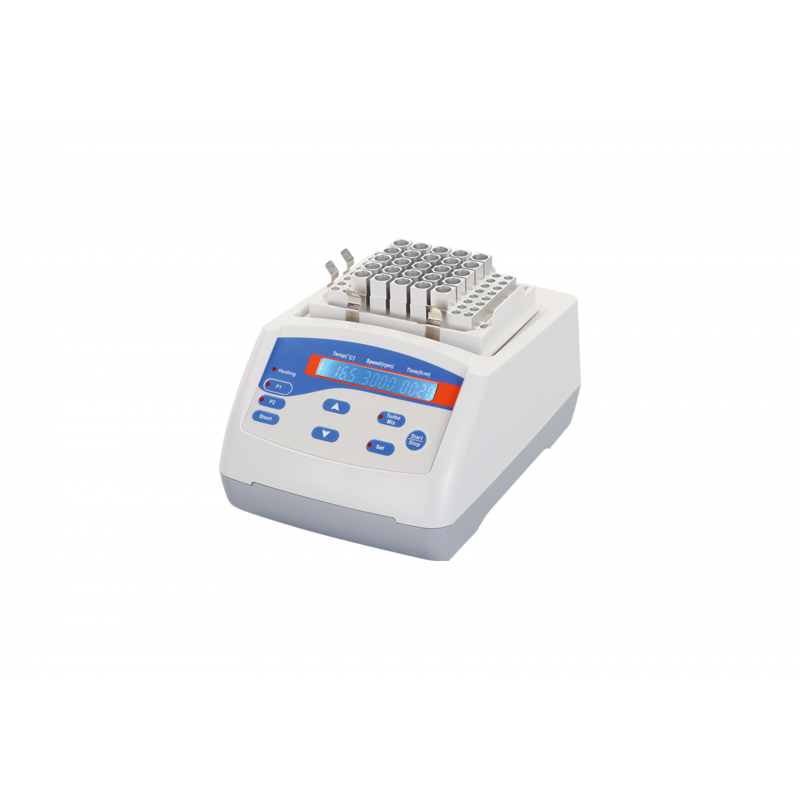

Thermo Shaker Incubator — TMS-200

TMS-200 thermo shaker incubator is for microplates, tubes, and glass vials. Perfectly controlled 3-dimensional mixing prevents spilling and lid wetting. TMS-200 integrates three functions of mixing, shaking, incubation and heating and the concept of intelligent operation. It can not only mix various microtubes, PCR plates, deepwell plates and microplates and other commonly used laboratory consumables , and also has the function of heating and incubating various modules.

Unique patented technology and anti-vibration technology support accurate and efficient mixing and temperature control, with programmable functions

Features :

• Microprocessor controls temperature, speed and time, with good temperature control linearity, accurate oscillation speed and small fluctuation

• With power-off recovery function, when the power is cut off and the power is turned on again, the device can automatically resume operation according to the original set procedure

• Temperature calibration function and short oscillation inching function

• DC brushless motor drive, long life, maintenance-free

• Multiple safety protection functions. Conforms to CE safety standard, safe and reliable

• Three mixing and incubation methods:

 1) Microplates (can be used for shaking and mixing function)

-- 96-well, 384-well,1536-well microplates/deepwell plates/PCR plates (with skirt, half-height skirt, without skirt)

 2) Holder (can be used for shaking and mixing function)

- 0.2ml PCR tubes holder, 0.5ml tubes holder,1.5/2.0ml tubes holder

- 15ml Micro tubes holder, 50ml Micro tubes holder

 3) Block(Can be used for heating incubation, shaking and mixing functions)

 - 10 types aluminum blocks for user choosing

Specifications :

• Model
  TMS-200
• Temp. control range
  RT +5 °C ~100 °C
• Temp. uniformity
  ≤0.5 ℃
• Timer range
  1 min～99 h59 min
• Temp. control accuracy
  ±0.25 °C (@37 °C)
• Display accuracy
  ±0.5 °C (@ 95 °C)
• Display accuracy
  ±0.1 ℃
• Mixing speed
  300～3000 rpm
• Heating time (25-100 °C)
  ≤12 min
• Mixing orbit
  2 mm
• Dimension (W×D×H) mm
  230×170×165 mm
• Weight
  5.5 kg
