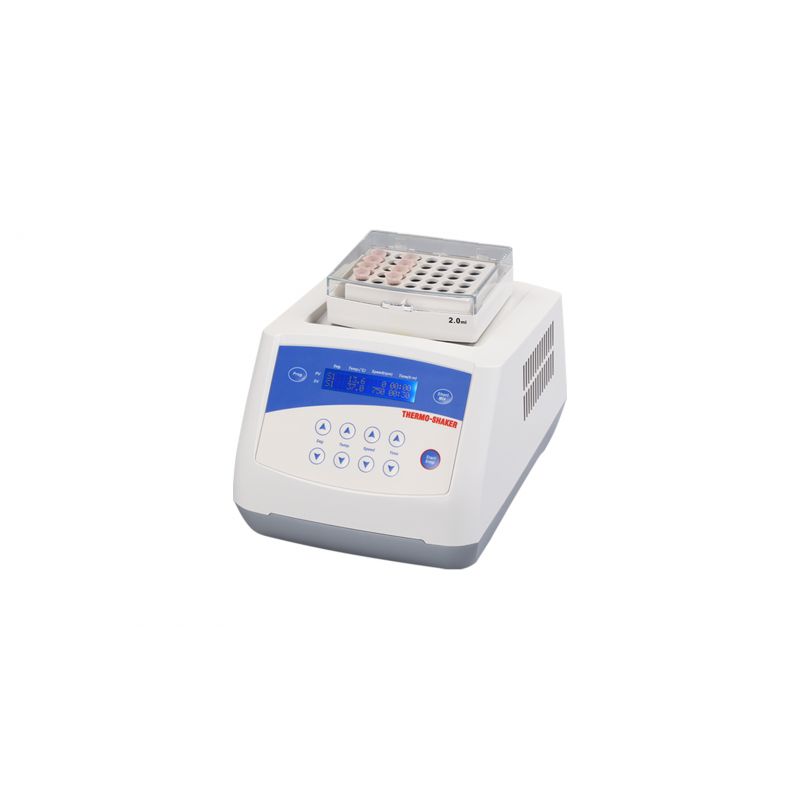

Thermo Shaker Incubator — MSC-100

Designed for simultaneous heating, cooling and mixing of small samples, MSC-100 can be supplied with interchangeable blocks for microtubes. Mixing, heating and cooling modes can be used either simultaneously or independently. The main body of the mixing block can be used with different kinds of blocks.

MSC-100 adopts DC brushless motor and microcomputer control technology, which perfectly combines the two functions of constant temperature and mixing, which shortens the time of experimental operation and improves the working experience of the staff. efficiency. It is an ideal automation tool for reaction processes such as sample incubation, catalysis, mixing and preservation.

Features :

•LCD display, easy to set up and use

•With power failure recovery function, the instrument can automatically resume operation according to the original set program after power failure recovery

•Microprocessor control, good temperature control linearity, accurate mixing speed and small fluctuation

•With timing function, the cultivation time can be set arbitrarily within the range of 0 to 100 hours

•Temperature calibration function and short oscillation inching function

•DC brushless motor drive, long life, maintenance-free

•Multiple safety protection functions. Conforms to CE safety standard, safe and reliable

•Accurately control and display time, temperature and speed

•Over-heating protection device ensures safety & reliability

•Low noise working even under the speed of 1,500rpm

•Peltier design of MSC-100 provides thermal control in a compact unit

•Easy to replace the metal blocks and is very simple to clean and sterilize

Specifications :

• Model
  MSC-100
• Temperature control range
  0 °C~100 °C if Ambient temp.≤20 °C
• Temperature control range
  4 °C~100 °C if Ambient temp.≤25 °C
• Temperature control range
  10 °C~100 °C if Ambient temp.≤30 °C
• Temp. uniformity
  ≤0.5 ℃
• Timer range
  1 min～99 h59 min
• Temp. control accuracy
  ±0.5 ℃
• Display accuracy
  ±0.1 ℃
• Heating time (25-100 °C)
  ≤15 min
• Cooling time
  ≤20 min (ET≤20 ℃: 20 ℃～0 ℃)
• Cooling time
  ≤20 min (ET≤25 ℃: RT～4 ℃)
• Cooling time
  ≤20 min (ET≤30 ℃: RT～10 ℃)
• Mixing orbit
  2 mm
• Dimension
  300×220×170 mm
• Weight
  8.5 kg
