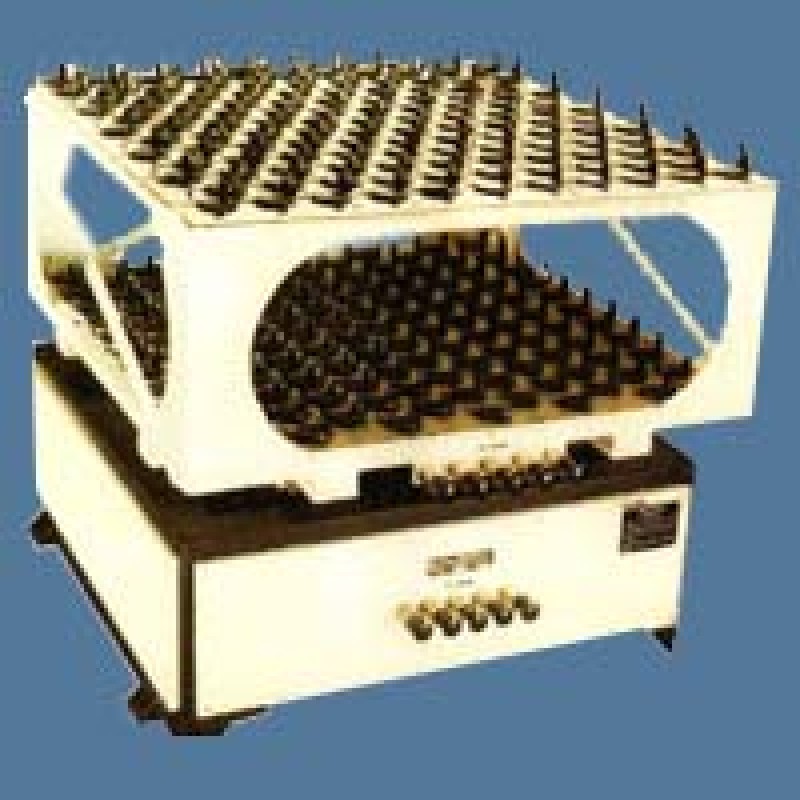

Super Heavy Duty Two Tier Rotary Shaker Machine ( Model A )
Product Details :
| Capacity | : | a) 127 clamps of 250 ml on each tier. Total 254 or 83 clamps of 500 ml on each tier. Total 166 OR b) Upper tier carries 127 clamps of 250 ml, Lower tier carries 127 clamps of 150 ml OR c) Upper tier carries 25 clamps of 2000 ml, Lower tier carries 49 clamps of 1000 ml ( select any one ) |
| Platform Size | : | 40" x 40" approx. |
| Overall Dimension | : | D x W x H = 54” x 40” x 45” approx |
| Rotary Stroke | : | 25 mm fixed or 38 mm or 50 mm or 70 mm ( select any one ) |
| Speed | : | 50 - 250 rpm. Controlled by AC Frequency Drive |
| Indication | : | Digital |
| Mechanism | : | Five Crankshaft Assembly |
| Electric Motor | : | 0.5 H.P. A C motor |
| Power Required | : | 230 V, 50 HZ, Single Phase, 15 amps stabilized |
| Light Grouting | : | Required at the base of the equipment. |
