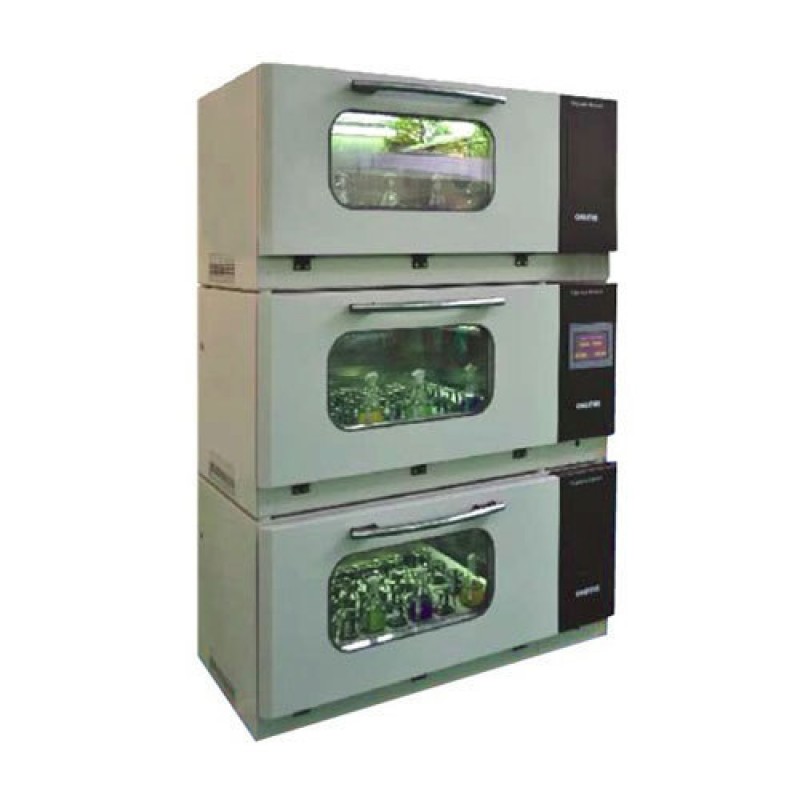

Stackable Shaker

Product Details:

ORBITEK ® Stackable Shakers has optimal foot print with robust structure for stable operation at full stack.

VERSATILITY

• Stackable shakers with large holding capacity can be stacked upto 3 vertical high.
• Inner chamber tall enough to support 5 Ltr flasks.
• Data logging facility for temperature and speed.
• Gassing manifold for purging Co2 / N2 available as optional.
• Programming of speed and temperature with facility for simulating day/night settings, UV-C de-contamination, - LE4676-H.

CONVENIENCE

• Swing down front open door with gas spring dampers for convenient operation.
• Top platform height is under 1.5 m from ground, while 3 stacked , enabling convenient accessibility .
• Wide front double glazed window for clear view of culture flasks
• Full length slide -out platform for easy accessibility during loading/unloading culture flasks.
• Touch screen operation with large colour LCD display screen for visual comfort.
• ( Model : LE 4676 H )
• Soft-key pad operation with bright LED display ( Model:LE 4676)
• Side mounted refrigeration unit for ease in serviceability without disturbing the stack assembly.
• All stainless steel inner chamber for easy cleaning and disinfection.
• Ergonomically designed slide out photosynthetic light bank –optional.
• Stationary trays along the depth of inner chamber for incubation needs.

RELIABILITY

• Brushless AC / Brushless DC drive
• High grade insulation for constant temperature maintenance.
• 300 rpm shaking speed even at full stack with minimal vibration
• Triple-eccentric counterbalanced Drive mechanism ,ensuring smooth running at full load and no load conditions.
• Temperature uniformity with minimum gradient for reliable growth results.
• Optional UV-C lamp for disinfection to avoid contamination
• Programmed acceleration and deceleration circuit for Gentle Start/Stop cycle to prevent spillages or cell shear .
• Audible & Visual alarm for Speed & temperature deviation.
• Residual Current Circuit Breaker (RCCB)for user safety
• Thermostat cut –off for temperature over shoot
• Emergency Stop switch
• Door sensor to stop the movement upon door opening.
