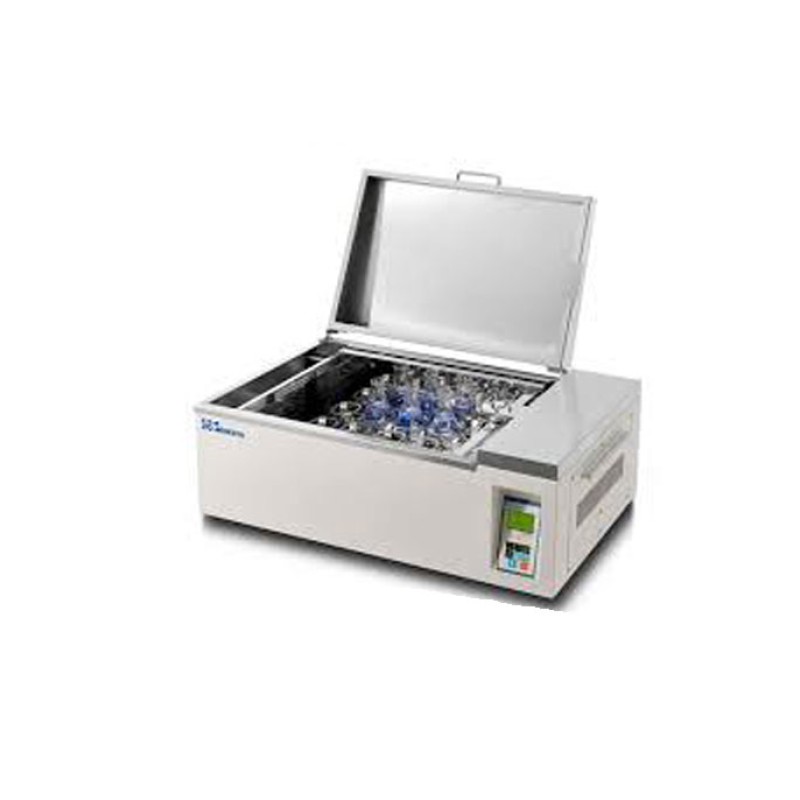

Shaker Bath
Product Details :
- Bath designed for studies on Tissue metabolism, Enzymes and Protein coagulation & experiments requiring Shaking of subject matter at constant speed under controlled temperature environment
- Double walled construction, Argon welded Leak proof Inner tank made of Stainless steel -304 Grade & Exterior made of CRCA Steel– Powder coat finished.
- Inner tank made of Stainless Steel - 316 grade and Exterior of Stainless Steel - 304 grade in GMP MODEL
- High density glass wool insulation to prevent heat loss & ensure constant temperature /li>
- Hinged Pyramid shape lid provided avoids Evaporation of water and makes condensed water to fall back in the bath
- Shaking tray consist of Lotus clamps to hold Erlenmeyer flasks
- Shaking mechanism comprises of Variable speed PMDC geared motor fixed on right side & coupled to the shaking tray which shakes linearly
- Shaking Stroke : 25 mm
- Shaking speed can be controlled by means of Electronic Speed Controller cum Digital RPM Indicator between 50 RPM to 150 RPM.
- Temperature controlled by Dual Display Microprocessor based PID Temperature controller & PT – 100 Sensor.
- Temperature Range :- 5o C above ambient to 95o C .
- Temperature Accuracy :+ 1o C or better
- Operates on 230 Volts AC Single phase 50 Hz.
BATH SIZE L X W X D | CAPACITY | WATTAGE | MAXIMUM SHAKING CAPACITY |
---|---|---|---|
16″ X 12″ X 10″ | 100 Ml X 12 Nos. | 1000 | 1.5 Ltrs. |
250 Ml X 6 Nos. | |||
18″ X 14″ X 10″ | 500 Ml x 6 Nos. | 1500 | 2 Ltrs. |
20″ X 16″ X 10″ | 250 Ml x 12 Nos. | 2000 | 3 Ltrs. |
