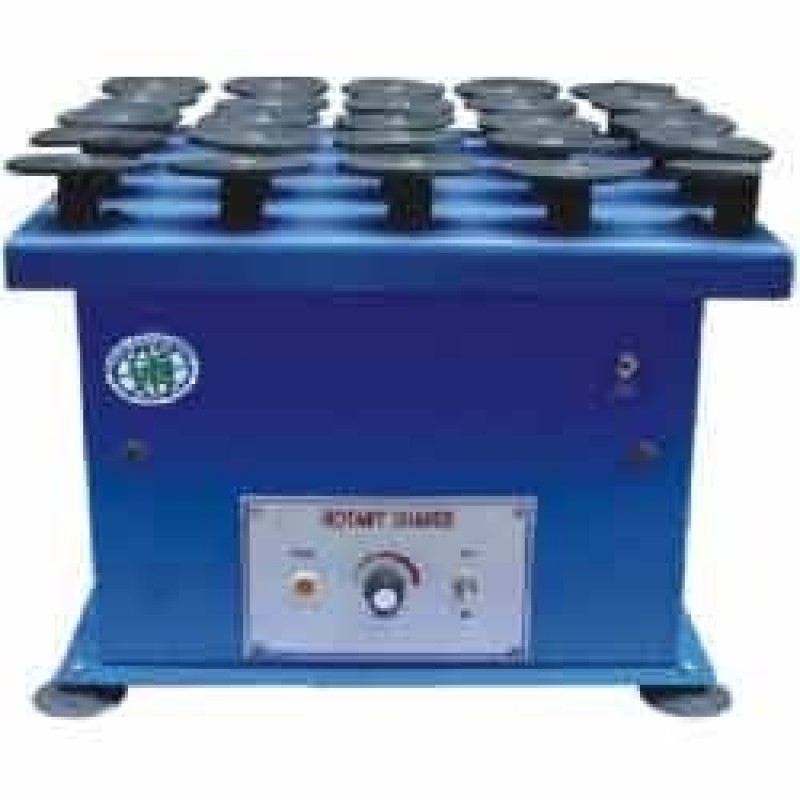

Rotary Shaker
Product Details :
In order to meet the different necessity of our prestigious consumers, we are occupied in presenting a broad series of Rotary Shaker. Professionals employ the industry approved component, which is acquired from reliable sellers of market to develop this range. Our series is extremely used by clients for their longer service life, strong nature, and reliable performance.
Features:
- Better-fabricated assembly frame heavy mild steel section duly painted or powder coated.
- Counter Balanced drive mechanism ensure high stability & reliability in regular operation
- Available Fixed & Variable Speed.
- Maintenance free Induction drive motor.
- Variable speed from 100 -180RPM & 20 - 180 RPM as per requirement
- Uniform platform to accommodate interchangeable clamps of different size for different
- capacity of Flask.
- Uniform circulation of 19 mm diameter to Load platform in Horizontal Plane.
- Uniform Circulation motion of 25 mm dia in horizontal plane for heavy duty Rotary Shaker.
Technical Specifications:
| Model | UTS 1.15 | UTS 1.15 A | UTS 1.15 B | UTS 1.15 C |
| Dimensions | 12" x 12" Variable Speed | 18" x 18" Variable Speed | 25" x 25" with Fixed Speed 1/ 4HP Motor | 35" x 35" with Fixed Speed 1/ 2HP Motor |
| Capacity (Ltrs.) | 9 Flask of 250 ml | 16 Flask of 250 ml | 25 x 250 ml or 36 x 10 0ml | 36 flask of 250 ml |
| No. of Tray | 1 | 1 | 1 | 1 |
Technical Parameter:
- Housing Material Fabricated assembly from heavy mild steel (MS) Section duly paint/ powder Coated.
- Duty Cycle Continuous Power Consumption : 220/230 V AC -10% 50 Hz single phase Optional.
- Digital RPM meter with DC drive.
- Spare Tray for above unit different capacity.
