We Built with completely smart controls making it a smart design. Controlled by microcomputers for high accuracy, hence less electricity consumption, adds great efficiency to the product at high speeds upto 15 to 1200 RPM that is software controlled. Stable operation with speed settings from 1 to 99 minutes including continue mode and pulse mode. Corrosion resistant to fight chemical stains.
Features
- No moving parts: Truly maintenance free.
- Slim profile: Just 13.4 mm thick.
- Digital Display with adjustable speed and time.
- Stirring cap. 400ml: Set up place diameter of 85 mm.
- Software driven gradual acceleration.
- Speed setting from 15 to 1200 RPM & time from 1 to 99 mini & continuous mode.
- Pulse mode: Reserves the direction every 30 seconds for proper mixing.
- Corrosion resistant SS top surface to fight harsh chemicals.
- IP 65 complaint design(Water spill resistant).
- Recommended Stir bar length 25 mm.
- Supplied with 1 high strength stir bar.

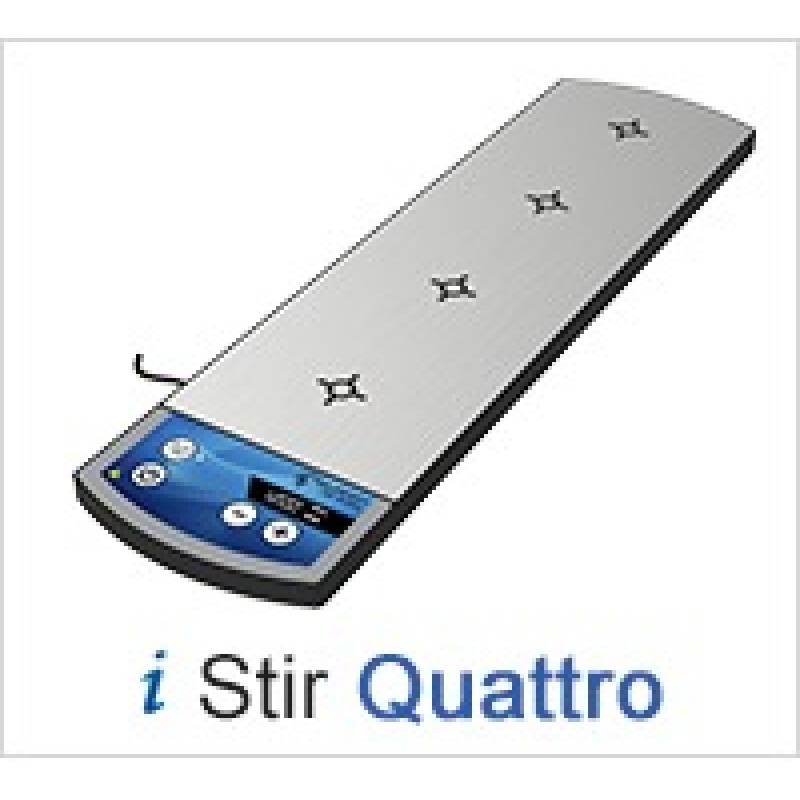

Specifications | Quattro |
Number of Stirring positions | 4 |
Stirred quantity (Max) (Tested in H2O) | 400 ml at 1200 RPM with 25mm stirring bar per stirring position. |
Speed range | 15 - 1200 rpm |
Time range | 1 to 99 mins |
Auto direction change/Pulse Mode | Yes |
Auto direction change time interval | 30 seconds |
Digital Display | Yes |
Recommended Stirring Bar Lenght | 25 mm |
Set-up plate material | Stainless Steel |
Set-up Dimensions (L x W) | 385 x 122 mm |
Distance Between two stirring points | 95 mm |
Dimensions (L x W x H) | 457 x 126 x 13.4 mm |
Weight | 1.9 Kg |
Permissible ambient temperature | 5 - 40°C |
Protection class according to DIN EN 60529 | IP 65 |
Input voltage | 100 - 240 VAC |
Frequency | 50 / 60 Hz |
DC Voltage | 9V |
Current Consumption | 1.4 A |
