Specifications:
- Carries upto 7 sieves of 150mm or 200mm diameter.
- The shaker is driven by a 1/4 h.p. motor through a reduction gear immersed in oil.
- The sieve table dies not rotate but is inclined from the vertical axis and the direction of inclination changes progressively in clockwise direction.
- If the stop-pin below the table is removed, the shaker can have a rotary motion. In addition to this gyratory motion of the table, there is an upward & downward movement ensuring that each square cm of the sieve is utilised.
- A pair of rods and a holder are supplied.
- The holder can be fixed on the top of the upper most sieve, and thus the sieve set is firmly held.
- Suitable for operation form 230 volts, 50 cycles phase, A.C. supply. Nett weight appprox. 77 kgs. Available in digital display model also.
- Gyratory Sieves Shaker 8",12" & 18" Dia

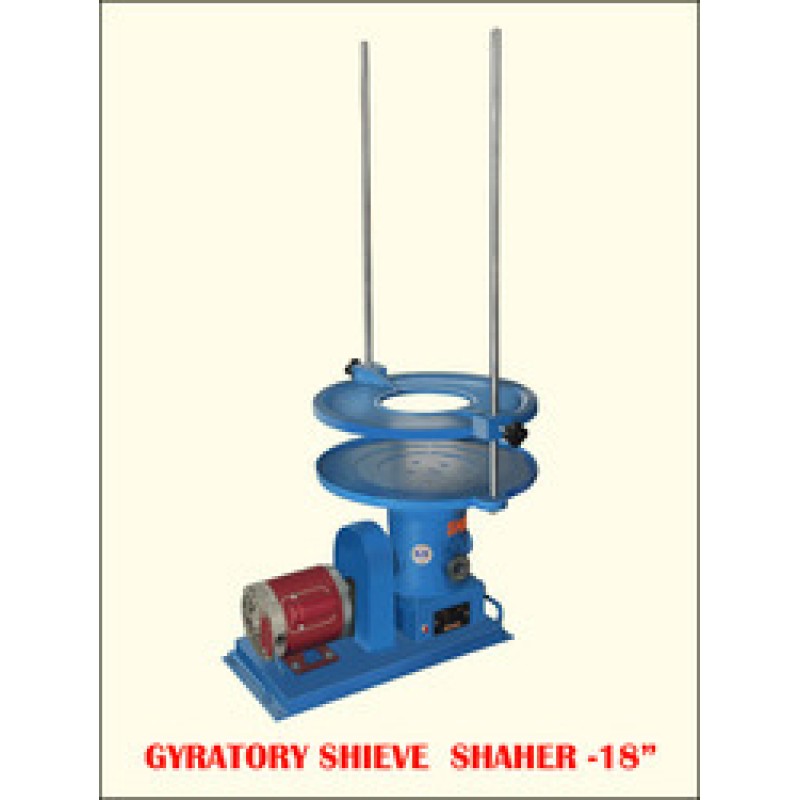

Gyratory Sieves Shaker
