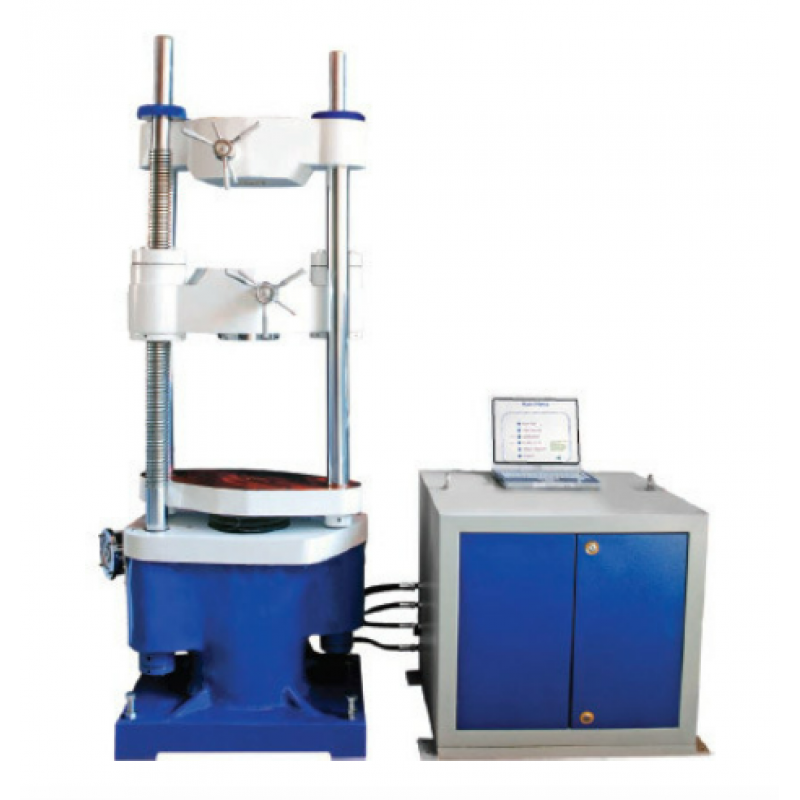

Servo Hydraulic Universal Testing Machine

Brand	Enkay Enterprises
Capacity	3000 Kn
Accuracy	0.5%
Displacement Resolution	0.001 mm
Maximum Pressure	250 kg/cm2

Being counted amongst the finest manufacturers and suppliers of a commendable range of Servo Hydraulic Universal Testing Machine, we direct all our efforts towards maintaining its quality. Thus, we engage in using the finest raw materials and modern technology in its manufacture. Owing to this, the offered product has a longer functional life and commendable functionality. Further, it is marked at the best rate possible.

Features:

• Longer functional life
• Commendable functionality
• Optimal design

Specifications:

• Stress Controlled 0.1kN/min. to Full Load kN/min
• Strain Controlled 0.01 mm/min. to 100 mm/min
• Torque Compensated Power Pack for 100% Oil Delivery at all Load Values
• Air Cooled intercooler for maintaining oil temperature below 45° at running conditions
• 100% control via Rj45 / USB Interface
• On-Board Characteristics linear zing
• Fully Computer Controlled
• Bumpless P.I.D Control using software controllable PID settings
• Dual Channel shifting
• 64 KHz data sampling rate
• With On-Line application of software for generating test reports and graphical plots - Loading/Straining Rate control - with the perpetual license
• Least Count: 0.001 kN for Load
• Loading and Straining Rate controlled through PC
• Minimum Loading Rate: 0.5% (of Machine Capacity) to Full-Scale load per minute
• Maximum Load Rate: Full-Scale Load per minute
• Minimum Strain Rate 0.01 mm per Minute to 100 mm/Minute
• On-Line Graph on PC or on standard PC, system
• Batch Test Facility (up to 10 curves on a single graph)
• High-Pressure Hydraulic Flexible Pipes/Anti Corrosive steel pipes as per requirement
• Hydraulic Power Pack immersed in oil reservoir, coupled with AC Induction Motor enabling easy maintenance
• As a standard we use all reputed branded components, with International warranty
• Straining at variable speeds to suit a wide range of materials as per IS / BS standards
• Motor driven threaded columns for quick effortless adjustment of lower cross - head to facilitate rapid fixing of test specimen
• Large effective clearance between columns enables testing of standard specimens as well as structures
• Easy change from plain to threaded and screwed specimens using Push button
• Robust staining frame of an extremely rigid construction
• Simple controls for ease of operation
• Safe operation ensured by means of safety devices
• (using Unique ENKAY Six Stage Protector)
• Chrome plated metal components
• Plain & threaded columns are hard chrome-plated to give the machine a perpetual new look
• Load Hold capability for 24 Hrs. within ± 1% of set load value
