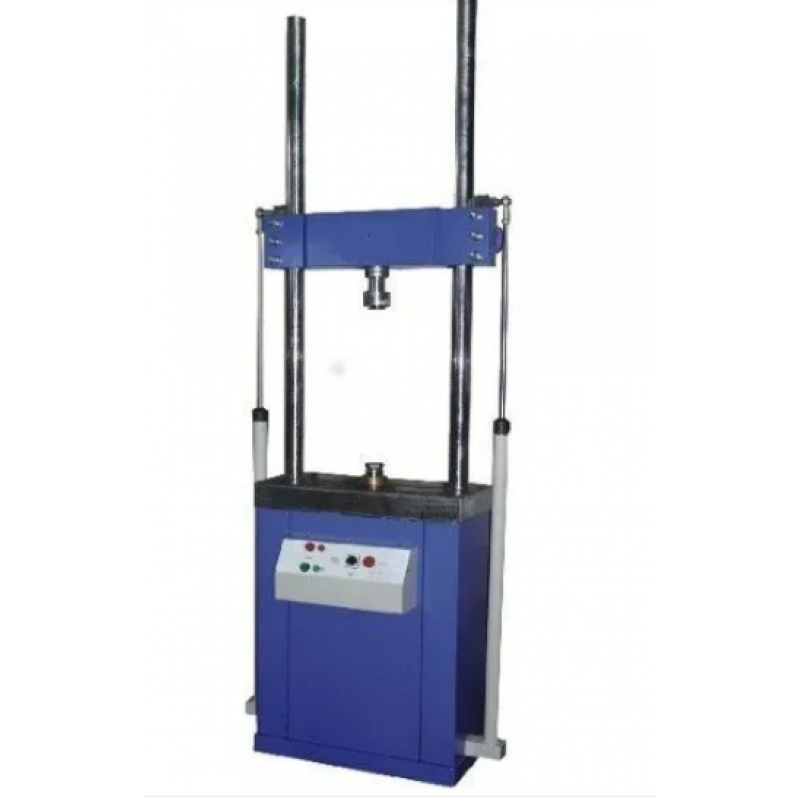

Servo Hydraulic Universal Fatigue Testing Machine
| Brand | Enkay Enterprises |
| Automation Grade | Automatic |
| Phase | Three Phase |
| Power | 440 V |
| Display Type | Touch Screen Display |
| Frequency | 0.01 to 25 Hz |
| Speed | 1000mm/min |
| Voltage | 230-240 V |
EKE100 Series of Servo Hydraulic Universal Fatigue Testing Machine are suitable for fatigue and static loading applications, are compact in design, easy to operate, sturdy loading units with enough clearance both horizontal and vertical, to suit the test requirements of fracture mechanics, fatigue loading & static loading applications.
The main components of the system are:
- Load Frame with side jack sincluding
- Actuator with Servo Valve manifold
- Load Cell
- Displacement Transducer
- Electrical Control Panel
- Hydraulic Power Pack with Electrical Control Cabinet
- PC based Control System and Application Software includes
- Signal Conditioning and Controlling Unit
- Computer for Controlling and Data acquisition
- Control and Analysis Software
Servo Hydraulic Universal Fatigue Testing Machine
- Views: 50
-
Enkay Enterprises - Vendor Type: Manufacturer, Distributor, Supplier
- Product Code: EEL-0000012
- Availability: In Stock
