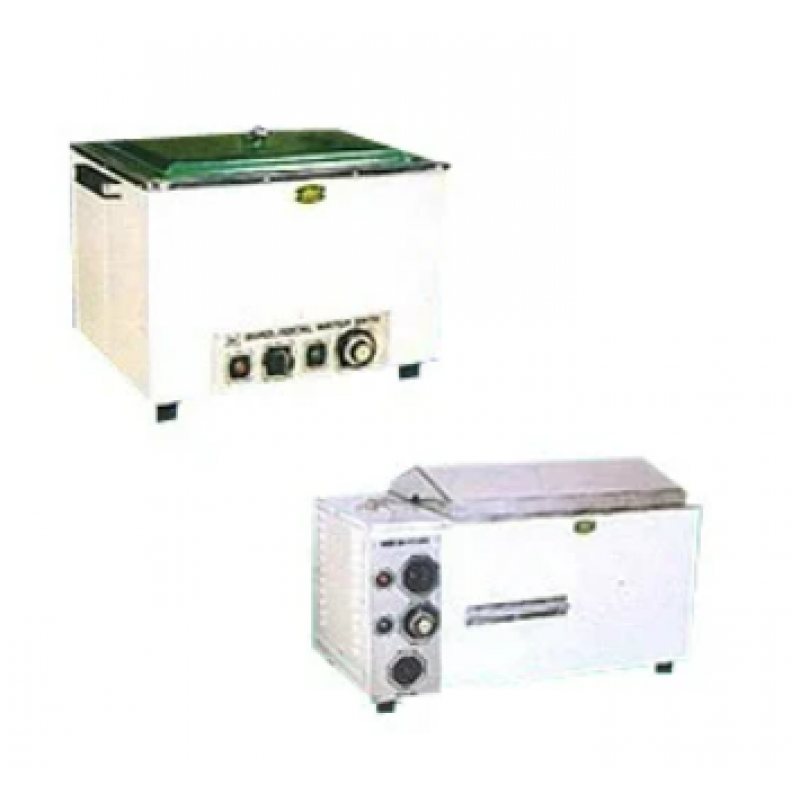

Serological Water Bath

The Serological Water bathsare versatile which can handle any clinical procedure, incubation,inactivation, agglutination, as well as most serological, pharmaceutical,biomedical procedure. Serological Water bath have been granted ISI mark due to its unmatchedperformance and quality raw material used.

Construction:-

serological water baths aresturdy, with double walled construction. Complete inner chamber made of highly polished stainless steel. OuterChamber is made of mild steel sheet, finished with powder coated paint. Gapbetween the walls is filled with special grade glass wool for proper insulationto avoid heat losses. The water bath is provided with a drain plug tofacilitate easy emptying and cleaning of the inner chamber whenever necessary.Test tube racks can be provided on requirement. Pyramidal shaped cover (aluminumlid) and perforated removable diffuser are standard accessories.


Heating Elements	Immersion heating elements made of high grade materials are fitted at bottom with different ratings for different sizes.
Temperature Control	Temperature is generally controlled by imported capillary type THERMOSTAT from ambient to 80°C ± 0.5°C. Temperature control knob is graduated in centigrade degrees.
Control Panel	The equipment is provided with a panel having a thermostat control knob, ON/OFF switch, two pilot lamps. Our range is supplied with cord and plug.
Power Requirement	Suitable to operate on 220 v, single phase, 50 Hz, AC supply



 Size of inner chamber:-


W x H x D	Load
300 X 250 X 150 mm for 2 racks	1 kw
330 X 300 X 150 mm for 4 racks	1.5 kw
455 X 300 X 150 mm for 6 racks	2 kw
605 X 300 X 150 mm for 8 racks	3 kw
250 X 125 X 125 mm with lid	0.5 kw



Optional Accessories:-


• Test Tube Rack made of Stainless Steel 3 Tier with Lift in Handle 13mm Dia 24 Hole or 16mm Dia 18 Hole
• Digital Display temp, indicator in lieu of Thermometer
• Digital Display temp, controller-cum-indicator in lieu (thermostat and thermometer)
• Microprocessor based PID temperature controller cum indicator in lieu of thermostat and thermometer
