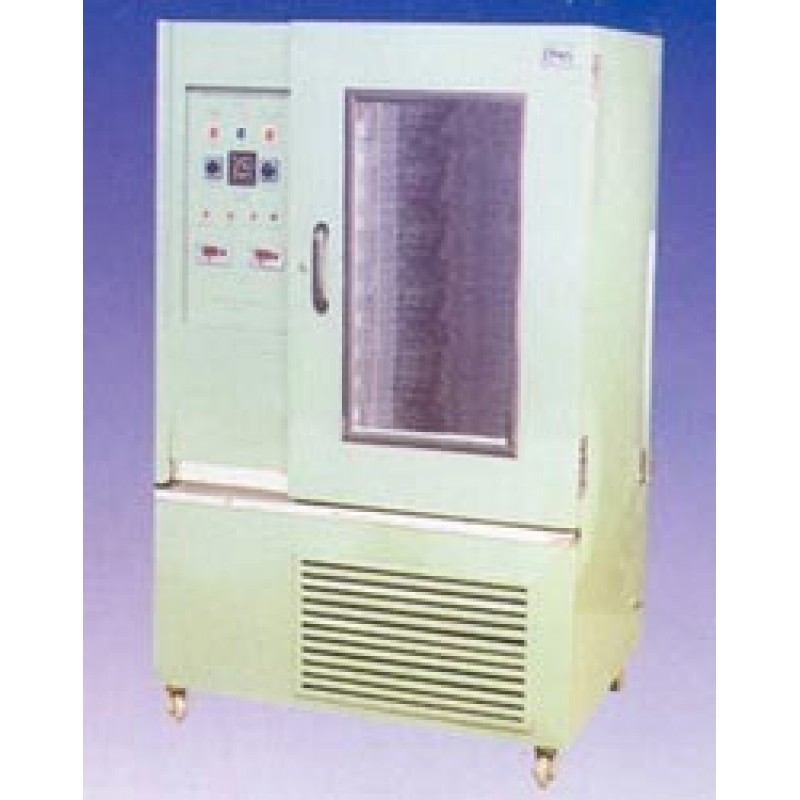

Seed Germinator

Preoduct

• Designed for conducting various experiments on variety of seeds under different parameters of temperature, humidity etc. Atmospheric environment can thus easily be simulated within the laboratory to perform different experiments without going into the field, by creating desired condition of temperature & humidity in the chamber of seed germinator. It is of double walled construction. Inner chamber is made of aluminium/stainless steel & outer cabinet is made of ms sheet, duly pre treated & finished with epoxy powder paint. Insulation is provided between inner chamber & outer body to minimise heat loss. S. S. Water reservoir at the bottom provides 90% to 95% fixed humidity (not adjustable). Temperature from ambient to 50°c ± 0. 5oc is controlled by imported capillary thermostat.
• Door is also provided with a viewing glass window to view the germination of seeds inside the chamber without opening the door, thus no temperature/humidity loss. Air circulation ensures uniform temperature inside the chamber.
• Heater provided for temperature control and humidity is achieved by steam generator inside the chamber. A water reservoir in the bottom is heated through immersion type heaters generates the steam. Thus creating humid condition inside the chamber.
• Panel is fitted with graduated temperature setting dial and pilot lamps, switches etc. Supplied complete with 6 aluminium/ss perforated trays. Complete with cord and plug, to operate on 220 volts, 1 ph, 50 cycles ac supply.
