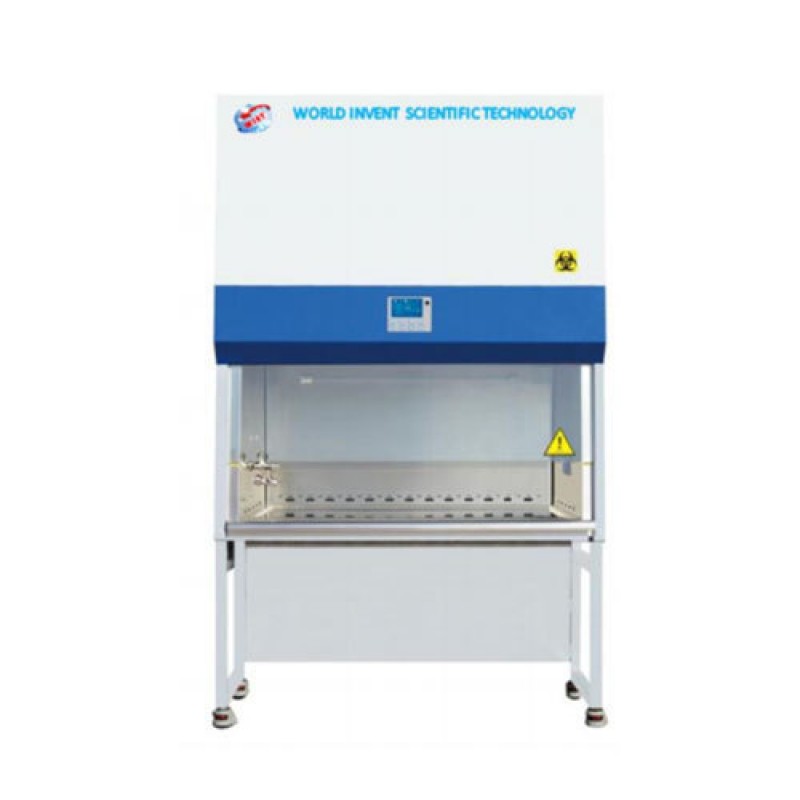

Biological Safety Cabinet
Product Details :
Material | Stainless steel |
Cabinet Material | Stainless Steel, Mild Steel |
Main Filter | HEPA Filter |
Voltage | 230 V |
Brand | Wist |
Size | 2 x 2 / 3 x 3 / 2 x 4 mm |
Working Area Dimension | 1300 x 550 x 600 mm |
Front Suction Wind Speed | 0.55 m +- 0.025 m/s |
Overall Dimension | 1500 x 800 x 2100 mm (W x D x H) |
Laminar flow Biological Safety Cabinet (horizontal/vertical) designed so as to meet the requirements of US federal standard 209 B (BS 5295) providing particle free air to meet class 100 conditions. The unit is fitted with pre-filter and HEPA filter. Air is drawn through pre-filter and is made to pass through highly effective HEPA filters having efficiency rating as high as 99.99% with cold DOP & 99.97% with hot DOP thus retaining all air-borne particles of size 0.3 micron and larger. Using a dynamic machine, the blower and motor assembly is statically and dynamically balanced ISI marked motor of 1/5 HP capacity operates with minimum noise level. The working area is illuminated by fluorescent lighting fitted to the unit. Height of the working table provides comfortable "SIT DOWN" working position for the operator.
Salient Features :
- The cabinet is fabricated of thick wooden sheet (Optional : outer body made of mild steel duly powder coated/SS as per requirement)
- Work table is made of SS with mirror finish which makes it easy to clean, washable & chemical resistive, corrosive free.
- Side panels are made out of thick transparent plexus glass / acrylic sheet duly framed
- High efficiency pre filter
- HEPA filter efficiency- 99.99% with cold DOP & 99.97% with hot DOP thus retaining all air-borne particles of size 0.3 micron
- Pressure manometer to guage the pressure drop in the unit
- Built in U.V. Germicidal Light for disinfection and fluorescent light for work space illumination
- Utility- gas/air cock and multi point electric socket.
- Transparent front door
- Castor wheels for ease of movement.
