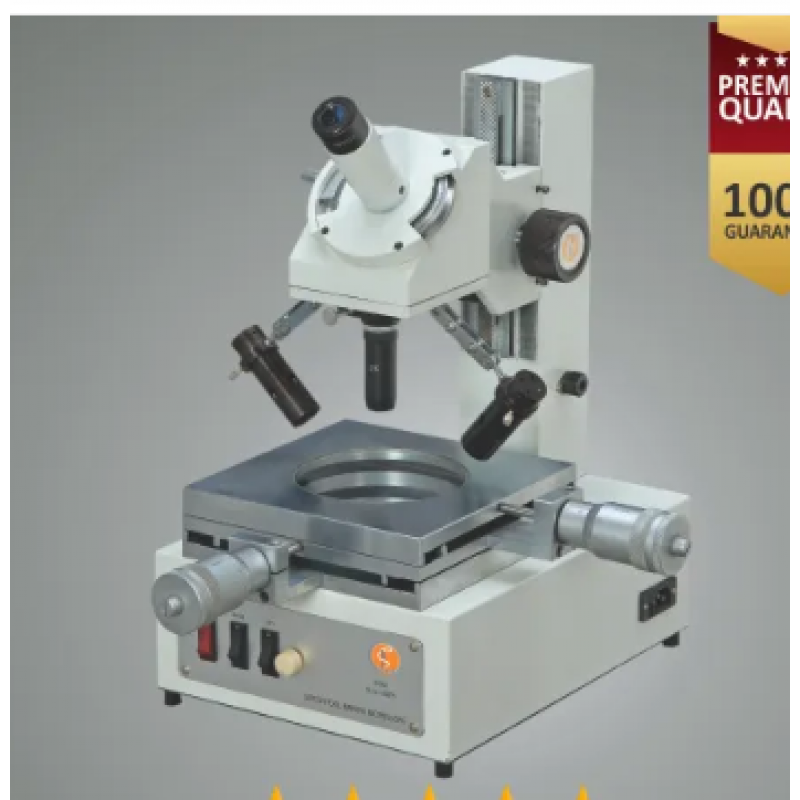

Toolmaker Microscope
Product Details:

Model Name/Number
STM
Brand
Sipcon
Eyepiece
Standard: WF 15X (with cross hair) Optional: WF 10X, WF 20X
Eyepiece Protector Range
0-360 Degree with adjustable Vernier of least count 6 mins.
Measuring Range Mm
50mm X 50mm X 70mm
Optical Head
Monocular (Binocular For Camera Attachment)
Objective Lens
Standard: 2X Optional: 3X, 4X, 5X
Workstage Size
160mm X 160mm for micrometers and 260mm X 260mm for D.R.O. and software
Measuring Range or Travel
50mm X 50mm for micrometers and 100mm X 100mm for D.R.O. and software
Measurement Method
Micrometer/ D.R.O. / Software
Focusing Range
100mm

A compact high precision industrial microscope featuring simplified operation. It has been developed for use in the plants manufacturing precision components, such as moldings, micro components, electronic components, semiconductors etc. A wide range of accessories are provided for making almost all industrial measurements possible.

Optional Hardware
A. Workpiece Holding Devices	Micrometer Measuring Rotary Stage, Center Holding Device, V.Block, Vee Support.
B. Depth Measuring Attachment	For precise measurement of height/depth of any specimen (Z-Axis).
C. Measuring Reticles	MR-200 Metric Coarse Thread 0.25-1.0mm, MR-201 Metric Coarse Thread 1.25-2.0mm, MR-202 Concentric Table 0.05mm-4.0mm, MR-203 55 Angle, MR-204 60 Angle, MR-205 Whitworth 60-26 TPI, MR-206 Whiteworth 24-18 TPI
D. FME Filar Micrometer Eyepiece	Having 10X magnification with movable measuring line and cross hair adjustable by micrometer knobs reading 0.01mm and stage micrometer (Detailed leaflet on request)
E. PROJECTION ATTACHMENT	Comprising of a projection screen dia 90mm; to be placed on the viewing eyepiece inclined at 30° and you can get a sharp focused image for measurement.
