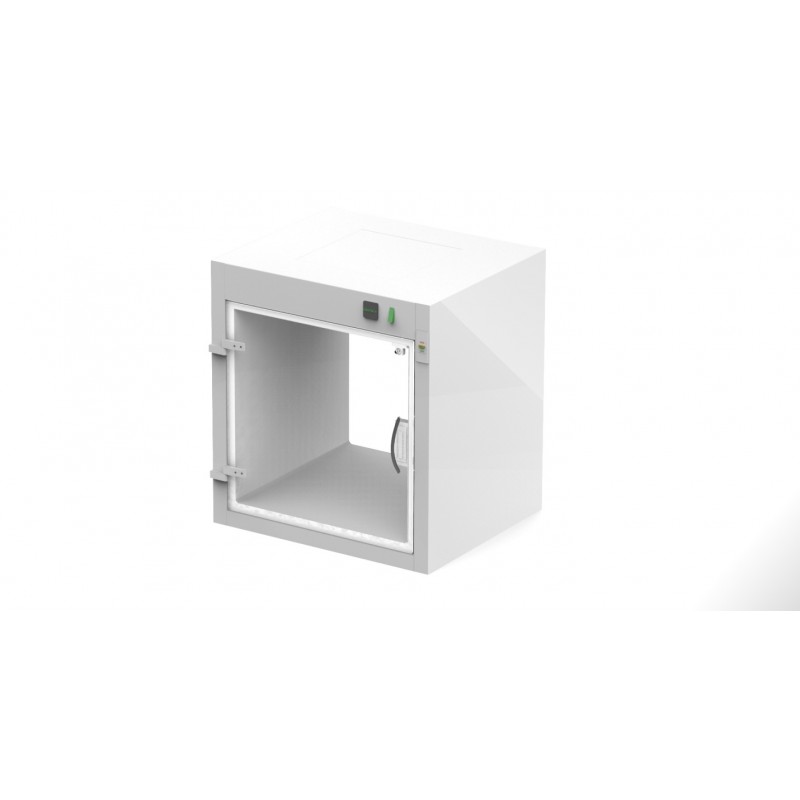

Static Pass Box is specifically designed that aids in the material transfer without much personnel movement. Furthermore, the Static Pass Box also acts as a hindrance for entrance of contaminants in clean room and other classified areas.

Specifications:

• Made available in SS 304 / SS 316/ SS 316L.
• Double walled flush glass view panels provided with doors or Toughen glass door
• SS Handles and SS hinges
• Electro-magnetic Interlocking & permanent magnet locking system
• Indicator on either side
• Internal covings for easy cleaning
• Door Release Switch on either side

Accessories Made Available (As per requirement):

• Mechanical Interlocking
• Floor mounted construction with three side wall structure
• Support stand for mounting the pass box
• Flange for filling the gap between the pass box and the clean room wall
• Fluorescent light with interlocking arrangement to put on light when the doors are in closed position
• U. V. Light with Hour Meter with interlocking arrangement to put-off U.V. Light if any of the door opens.
