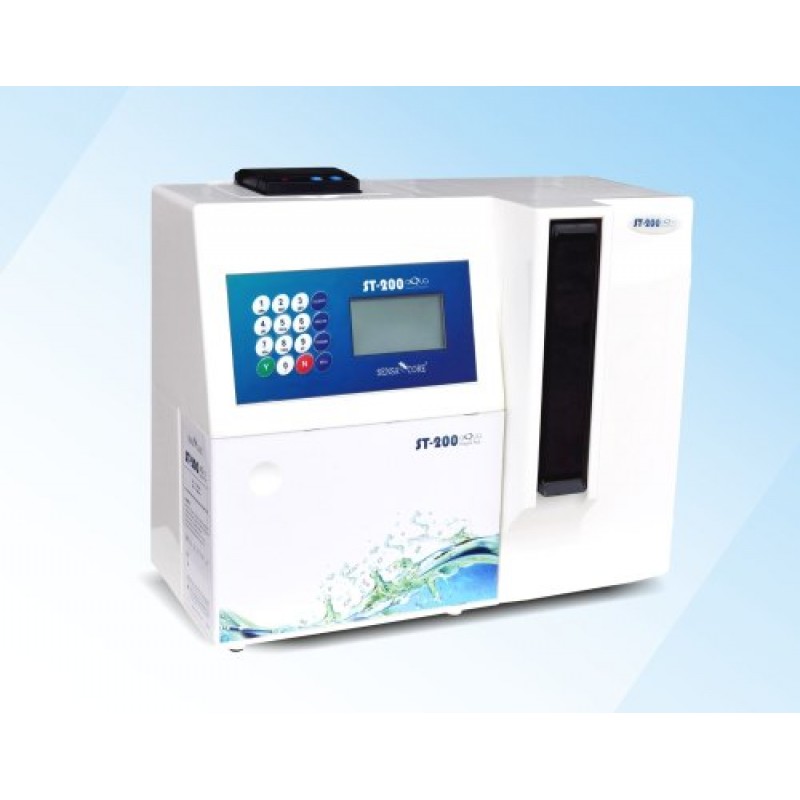

ST-200 Aqua Electrolyte Analyzer
Product Details :
| Model Name/Number | ST-200 |
| Brand | Sensa Core |
| Parameters | Na, K, iCa, Cl, Li, pH |
| Automation | Fully Automatic |
| User Input | Touch |
| Dimensions | 14.6 x 12.4 x 9.6inch |
| Sample Type | Whole Blood, Serum, Plasma, CSF & Diluted Urine |
| Weight | 4.3kg |
| Sample Volume | 100 uL |
| External Integration | LIS Integration (Serial Port) |
| Colour | Pearl White |
| Pump Mechanism | Long-Lasting Comprehensive Lyte |
| Sample Storage | 10,000 Samples, 250 Urine, 100 QC |
| Language | Single Language |
| Principle | Direct Measurement with ISE |
| Parameter Combinations | 10 Combinations |
| Keypad | Alphanumeric |
| Operating System | Embedded C |
| Input Voltage | 110/115-V AC, 50-60 Hz or 220V AC, 50-60 Hz, 0.75 amp. |
| Print Result | 2 Inch 24 Column Thermal Printer |
| Operating Atmosphere | 5 - 40 Degrees Celsius , <85% Moisture |
| Acquirable Results / Hour | 60 Results |
| Result Time | 50 Seconds |
| Sample Mechanism | Semi-Auto Sampling |
| Display Type | 128 x 64 Alphanumeric Display |
Sensa Core’s ST-200 aQua Electrolyte Analyzer is a semi - automated, microprocessor controlled electrolyte system that uses current ISE technology to make electrolyte measurements. The ST-200 aQua product measures various combinations of Sodium, Potassium, Ionized Calcium, Ionized Magnesium, Lithium, pH and Chloride in whole blood, serum, plasma, CSF, body fluids and urine.Sensa Core's ST-200 aQua Electrolyte Analyzer is specifically designed to meet the needs of small to medium-size laboratories using the latest ISE technology. Sensa Core’s Electrolyte Analyzers improve lab productivity while delivering sample results economically. Snap-in electrode design, combined with precise control of calibrator volumes, ensure economical operation and a low cost per sample in our Analyzers. It has inbuilt wash for maintenance-free operation. Maintenance of Sensa Core's ST-200 aQua Electrolyte Analyzers is limited to the replacement of Reagent Pack & Pump Tube. The rest of the components are just plugged and play, including Maintenance-Free Electrodes.
Features :
- Measuring time 50 seconds
- 1000 samples per pack
- Alphanumeric key input
- Long life, maintenance free electrode
Features :
- Compact, Economical and easy to use.
- Excellent precision and reliability.
- Long life, maintenance-free electrode blocks.
- Dispense 100 uL sample and acquire 6 different Critical Care results. (Na. K. Ca, pH. Li & CI)
- Integrated Parameter conversion functionality. One set of Reagent Pack is common for all 10 combinations.
- Intelligent Reagent Pack with electronic chip.
- Extremely low cost per test.
- Optional battery backup & much more.
- Self-probe wiping facility with 3 different aspiration modes ( sample tube, sample syringe & capillary ).
