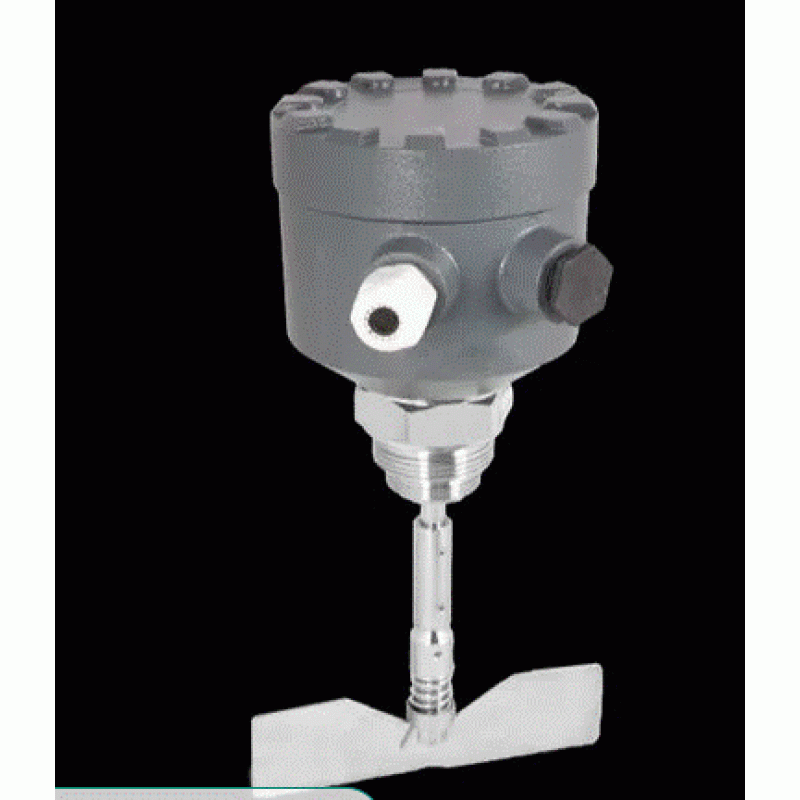

SLMR Orbit Stepmatic Rotary Paddle Level Switch
SLMR Orbit Stepmatic Rotary Paddle Level Switch
Product Details:
Switch Type
SPDT
Ambient Temperature
0dig C to 80 dig C
High Temperature
150dig C
Housing
Cast all Weatherproof integral with paddle (IP-67)
Operating Voltage
90-265 V AC 24 V DC
Probe Length
110 mm to 3500mm
Power Consumption
3 VA (approx)


Built in universal supply of 90-265 V AC 24 V DC
Direct stepper motor design
Need for gear boxes and clutches is eliminated
Variable torque control, one paddle for all applications
Flap action to discard clinging material
Selectable fail-safe operation
Foldable paddle mechanism for ease of installation
Two potential free contacts with adjustable time delay.
Applications:
Chemical Powders
Animal Feed Industry
Plastic chips, PVC powders
Cement Powder application
Food processing Industry
Pharmaceutical powders
