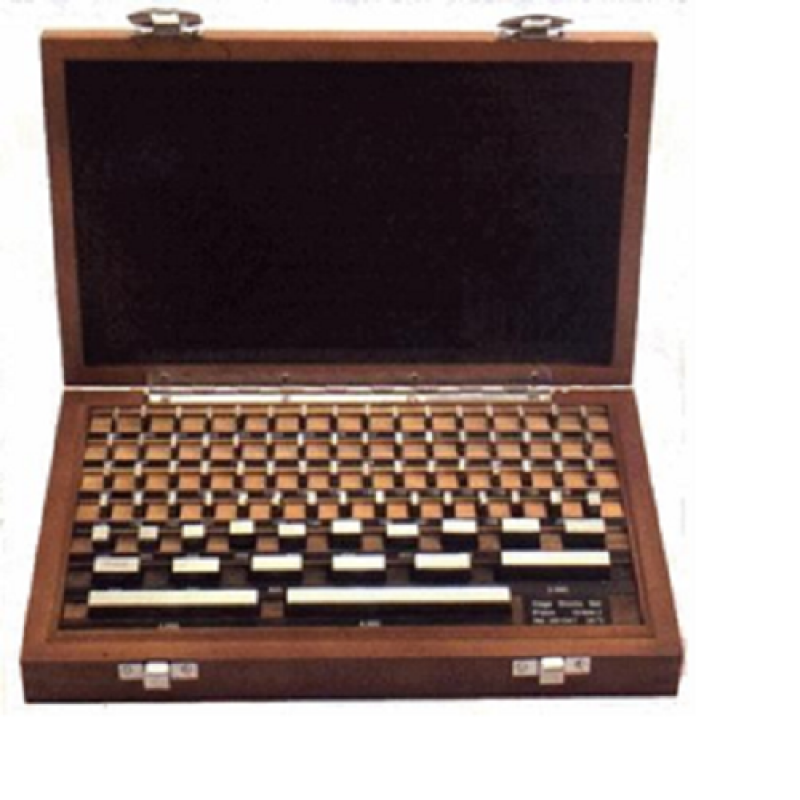

SLIP GAUGES SET

Product Details :

SPECIFICATION:-

• Gauge blocks Materials: hardened alloy Tool steels.
• Tungsten carbide Hardness 1400 to 1500 Vickers hardness.
• Dimension: 35 x 9 mm to 40x 12mm Long series blocks
• are having cross section with holes for clamping two slips together.
• Block Per Set: 112 Pcs
• 1 Block; 1.0005 mm
• 9 Block 1.001-1.009 mm in Step of 0.001 mmm
• 49 Block ; 1.01-1.49 mm in Step of 0.01 mm
• 49 Block ; 0.50-24.50 mm in Step of 0.50 mm
• 4 Block ; 25-100 mm in Step of 25 mm
• 49 Block ; 0.50-24.50 mm in Step of 0.50 mm
• 4 Block ; 25-100 mm in Step of 25 mm Standard specification with all accessories
