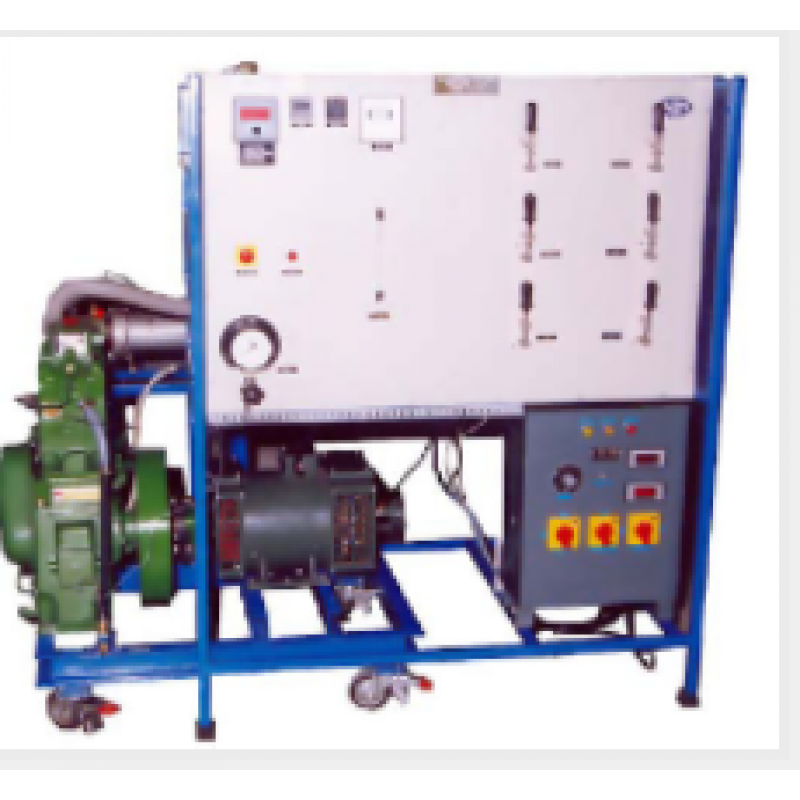

SINGLE CYLINDER FOUR STROKE DIESEL ENGINE TEST RIG (ETR-004)

SYSTEM COMPONENTS

• Internal Combustion Engine: One Cylinder Four Stroke Diesel Engine 5 H.P. (Approx.) at 1500 RPM – Kirloskar/Comet make
• Rope brake Dynamometer suitable for above-mentioned Engine.

• Fuel Tank, burette, three way clock
• Calorimeter- Shell & Tube type heat exchanger will be used, Manometer

• Air Box – PVC air box with orifice meter will be used
• Digital Temperature Indicator with temperature sensor – 6 channel 0-400°C

• Base frame – Made up of ms C channel duly powder coated
• Control Panel – for mounting of all indicators,  RPM Indicator

• Electrical switches & wiring,  Stopwatch, measuring jar
• Ammeter, Voltmeter in case of D.C. generator as dynamometer
