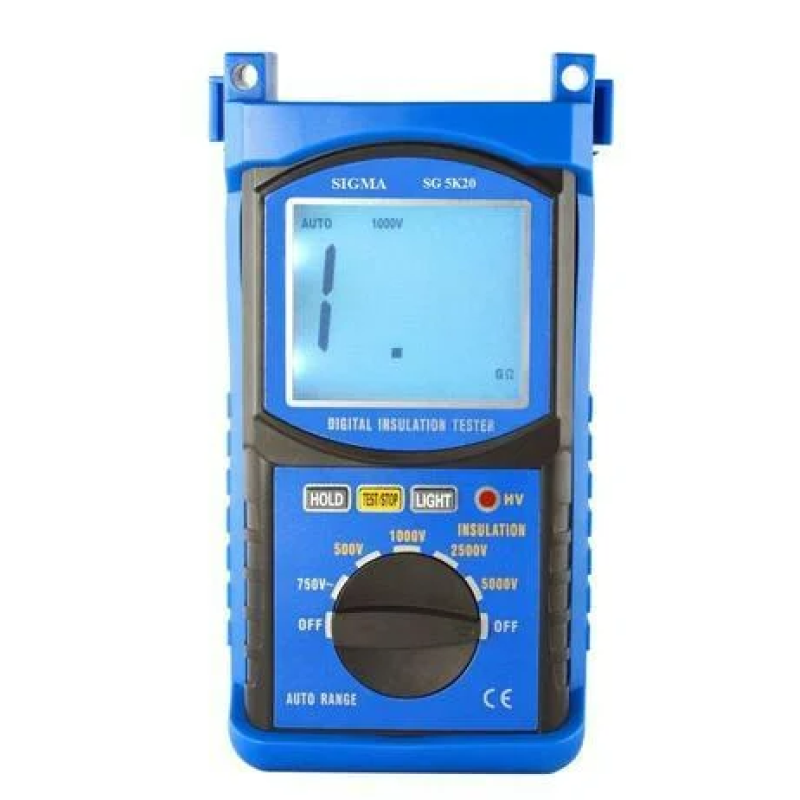

SIGMA Digital Insulation Tester
Material | Plastic |
Packaging-Type | Box |
With the help of our expert team members, we have been able to offer a wide range of SIGMA Digital Insulation Tester.
Features:
- Four test voltages cover 500V, 1000V, 2500V, 5000V for flexible application
- Measure insulation resistance to 200GΩ with 0.01MΩ resolution
- Data hold, auto range, auto power off, LCD background light
- Complete with test leads, heavy duty carry case and six 1.5V AA batteries
Specifications:
MODEL | SG 5K20 |
Testing Voltage | 500V, 1000V, 2500V, 5000V DC |
Insulation Resistance | 0.1 ~ 200MΩ ± (3% + 5digit) 200MΩ ~ 10GΩ ± (5% + 5digit) 10GΩ ~ 200GΩ ± (10% + 5digit) |
Resolution | 0.01MΩ |
Auto Range | Yes |
Function Symbol Display | Yes |
Data Hold | Yes |
Low Battery Warning | Yes |
Max. Display | 1999 |
LCD Backlight | Yes |
Power Supply | AA 1.5V X6 |
