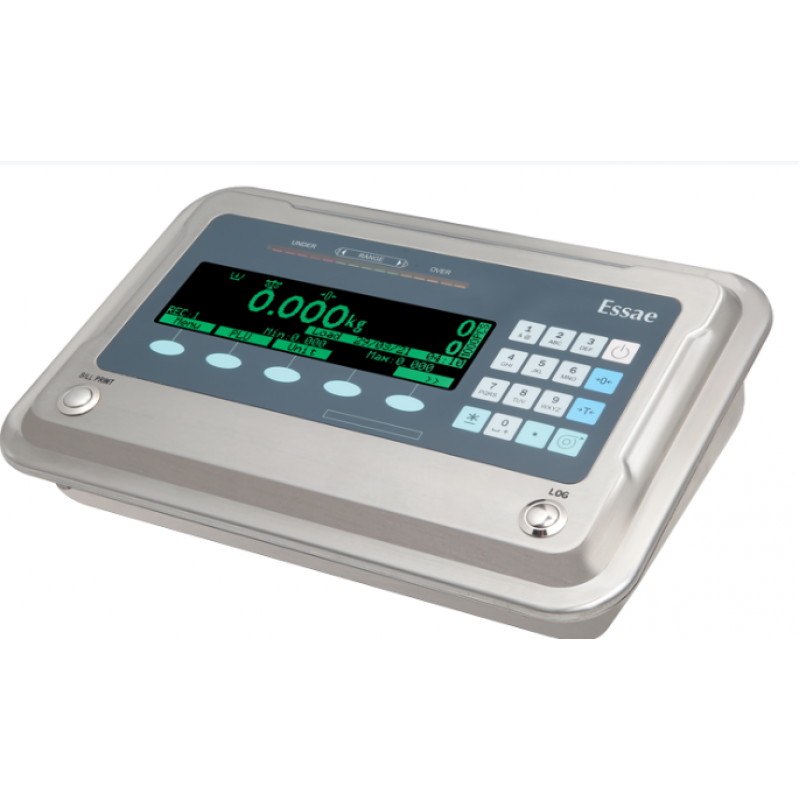

SI-850-WEIGHING-SYSTEM
The SI-850 is an Advanced Industrial weighing system designed to offer comprehensive solutions to meet a wide range of weighing applications including counting, check weighing, Filling, batching etc… Additional features include weight logging/recording print formats etc. It comes with a multi choice of platform dimensions & accessories.
Its wide options of Interfaces include RS-232 Serial, USB, LAN, Wi-Fi, 4-20mA etc. The perfect choice for automating Weighing Operations in all Manufacturing and Logistics Industries.
Salient Features
- Wide variety of configurable priting formats and reports
- Secure access control through passwords
- External scale/balance interface
- Windows 10 based PC applicaton software
- Compatiable ERP scale server
- User-friendly interactive menu
- Wide variety of configurable priting formats and reports
- Secure access control through passwords
- External scale/balance interface
- Windows 10 based PC applicaton software
- Compatiable ERP scale server
- User-friendly interactive menu
Technical Specifications
Weighing units g, kg, litre, carat (selectable) Display resolution Max. of 1/30,000 (selectable) Internal resolution 1/6,00,000 Processor 32-bit ARM processor ADC 24-bit precision delta-sigma Weight sensor Load cell Calibration method Software calibration Calendar/clock Date/time available through in-built RTC Weight recording Automatic or manual Printing data Bill Print (for each transaction)List print (summary reports) Memory 4 MB Flash 25,000 transaction records (optionally expandable up to 8 MB) Console MOC Stainless Steel SS-304
Weighing units | g, kg, litre, carat (selectable) |
Display resolution | Max. of 1/30,000 (selectable) |
Internal resolution | 1/6,00,000 |
Processor | 32-bit ARM processor |
ADC | 24-bit precision delta-sigma |
Weight sensor | Load cell |
Calibration method | Software calibration |
Calendar/clock | Date/time available through in-built RTC |
Weight recording | Automatic or manual |
Printing data | Bill Print (for each transaction)List print (summary reports) |
Memory | 4 MB Flash 25,000 transaction records (optionally expandable up to 8 MB) |
Console MOC | Stainless Steel SS-304 |
