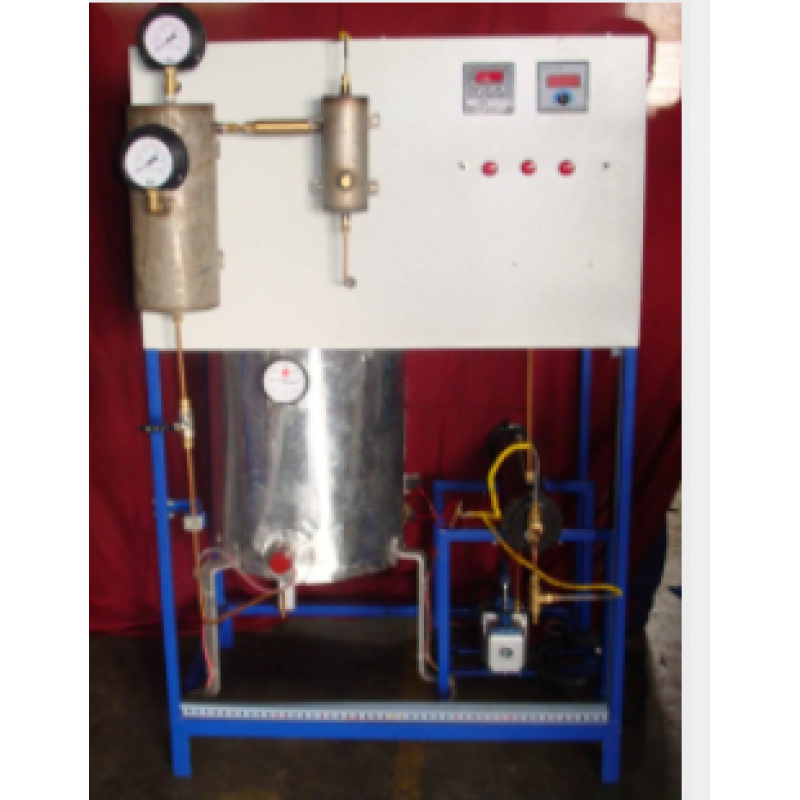

SEPARATING AND THROTTLING CALORIMETER (HT- 0056)

S P Tech Equipments made Separating and throttling calorimeter is designed to study the performance characteristics of separating and throttling calorimeter & evaluate quality of steam (Dryness fraction). The electrical boiler is used to generate steam which is fed to
the calorimeter. Separating calorimeter consists of two concentric chambers, the inner chamber and the outer chamber which communicates with each other through an opening at the top. Throttling calorimeter consists of chamber having a narrow throat, Steam leaving Separating calorimeter passes through the throat & enters the chamber. Thermocouples are provided to measure the temperatures at various points of the system.
