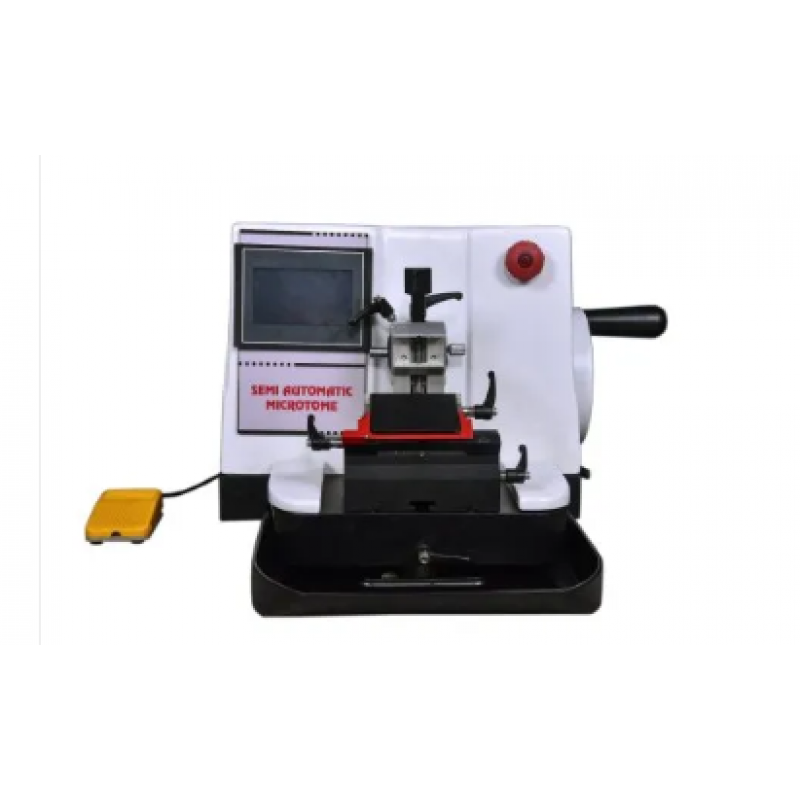

SEMI AUTOMATIC MICROTOME (TOUCH)

PRODUCT DESCRIPTION:

SAM-177 characterizes a great combination of cost effective competence and user comfort. Semi automatic microtome is the instrument of choice for clinical histology and histopathology applications. SAM-177 are used to produce thin sections of specimen of different hardness in both routine and research applications in biology, medicine and industry

TECHNICAL SPECIFICATIONS:

•  Total section thickness range from 0.5 up to 100µm.
•  Specimen retraction during return travel 0-200µm, selectable.
•  Horizontal specimen feed Approx. 30mm.
•  Vertical specimen feed Approx. 60mm.
•  Sectioning Modes 1 Manual Mode.
•  Specimen Orientation Horizontal: 8°, Vertical: 8°, Z: 360°.
•  Object feed 28mm
• Max. Specimen size 50 x 50mm.
•  Operation Semi-Automatic.
•  Fine section thickness feed via precision stepping motor : 0.25µm-0.5µm-0.75µm-1µm-1.25µ— 1.5µm-1.75µm-2µ— 2.25µm-2.5µ—3µm-3.5µm-4µm-4.5µm-5µm-6µ— 7µm-8µ—9µm-10µ— 12µm-14µ— 16µ—18µm—20µm-22µm-24µ— 26µ—28µm-30µm-35µm-40µ—45µ—50µm—55µm
• 60µm -70µ—80µ—90µm-100µm
•  Trimming thickness feed via stepping motor: 1µm—2µm—3µm—4µm—5µm—6µm—7µm—8µ— 9µm-10µ—12µm-14µ—16µ—18µ—20µm-25µ—30µm-35µm-40µ—45µm—50µm-60µm-70µm
• 80µ—90µm —100µ—110µ—120µm-130µm -140µm-150µ—200µm-250µ—300µ—350µ—400µ— 450µm-500µm-550µm-600µm
•  Nominal Voltage 220V, 50Hz / 110V, 60H
