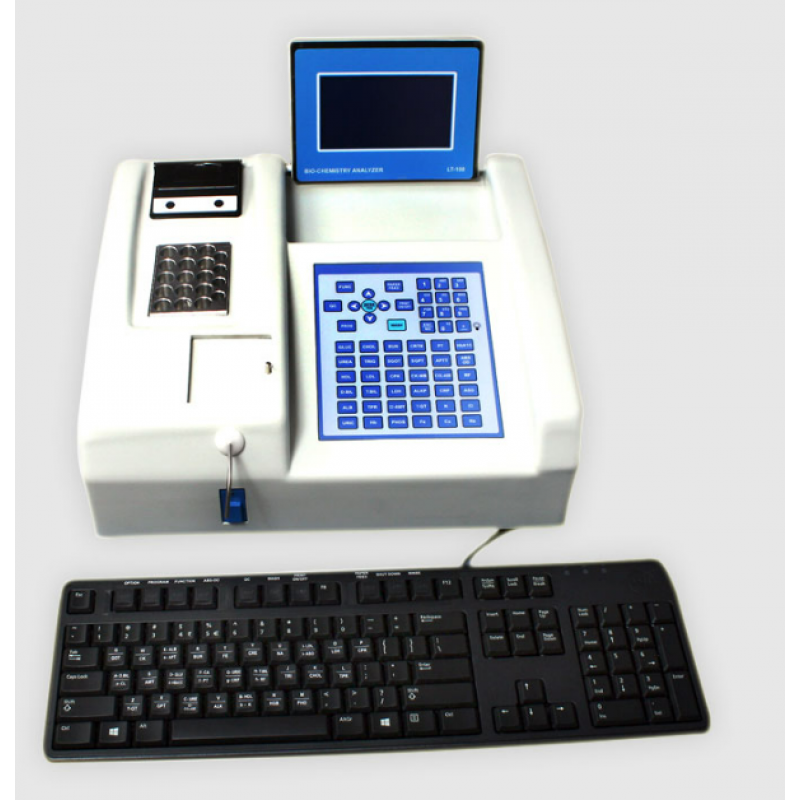

SEMI AUTO CLINICAL CHEMISTRY ANALYZER LT-100

Technical Specifications

•  user friendly software
•  End point method- Storage of abs of regent blank in memory/10 graphs for KIN test
•  Triplicate calibration mode for EP/KIN/Fix time.
•  Triplicate mode of sampling with / SD / CV
•  print out of laboratory and doctor’s name
•  for kinetic test : Online graph and OD, Graph editing facility, estimation of result
•  Air purge between sample to avoid carry over / lamp saver made
•  35 Direct Test keys for test selection
•  Utility mode for self diagnosis checking / 16 bit ADC
•  Sample type : serum/ plasma / CSF / urine / whole blood / hemolysate
•  Calculator for lipid profile globulin ration/ S. Iron TIBC / Billirubin

• Product Specification

Method of Calculations

• Absorbance
• End Point
• Fixed time : with standard or factor
• Kinetics
• Differential/Coagulation – PT/APPT/ Multipoint upto 10 standards

Optical system

• Principle : Aborption spectrophotometry
• Measurement : From – 0.1 to 3.0 a for
• Spectral range : Automatic via filter wheel
• Filters : 340, 405, 505, 546, 578 & 630 nm (450&670)*
• Bandwidth : 8nm(+2nm)
• Light source : Halogen lamp 12v/20W or 6v / 10W
• Zero : Automatic
• Settings : Monochromatic and Bi-chromatic mode
• Detector : Schottkey type photodiode – silicon

Thermostat : Flowcell/cuvette chamber

• Accuracy : + 0.10C
• Peltier regulated from 200C in steps of 1 C

Cuvettes

• Flow cell of 18 uL or 32 uL
• Cuvettes : Semi-micro plastic or glass

Suction System

• Bi-Directional peristaltic pump/Sipping
• volume programmable from 100 uL to 1.0ml.

Interface

• Screen : Graphic LCD 240/128 pixels
• Keyboards : Tactile Soft – Touch/USB*
• Printer : Built-in 57mm thermal printer RS – 232 for pc connection
• Parallel port for 80 column dot matrix printer*

Dry Bath Incubator

• 13mm diameter : 15 positions
• 10mm diameter : 4 positions
• Default Temperature : 370C+0.20C
• 3 inbuilt Timers : T1/T2/T3

Power/ Dimensions

• Voltage : 110-220V / 50-60 Hz
• Power Supply : <110W
• Temperature : 100C to 400C Relative humidity < 80%
• Dimensions : 13mm diameter

Programming

• Table of tests : up to 235
• Table of units : up to 9 units (editable)
• Memory : 1000 test results

Quality Control

• 3 controls per test – Low, Normal & high
• Quality control storage
• Levy-Jennings charts & Westagard’s rules
