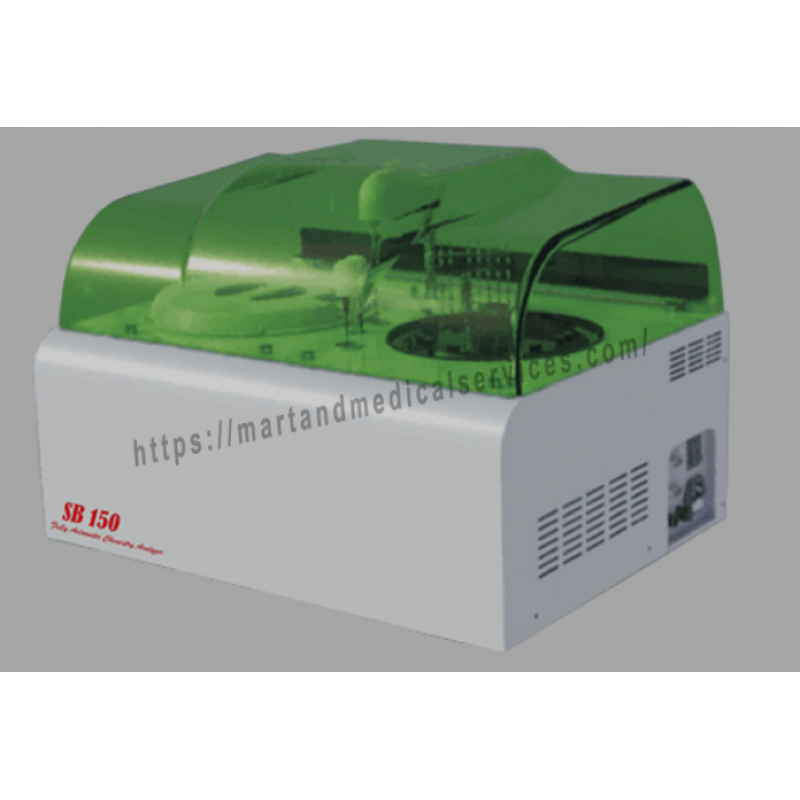

SB 150

TECHNICAL SPECIFICATION

Sample volume	2-50 ill (adjustable in 0.1 ill step)
Reaction volume	18411 to 50411
Reaction temperature	37 °C ± 0.2 °C
Reaction time	Single reagent chemistry:30-600sec, Double reagent chemistry: 30-300sec
Calibration	Maximum 20 calibrators can be used 6 calibrators maximum per test On-board auto dilution of Calibrator
Mixing type	Variable speeds paddle mixer (Low, Middle, High)
Maintenance	Auto scheduling — Start of Day, End of Day
Identification	Position Identification for samples and reagents Fixed Bar code reader for Identification for samples
Water supply unit	NCCLS Type 2: Up to 4.5 liters/hour (approx)
Quality control	Up to 3 levels programmable for every parameter
System Warm-Up	10 minutes system warm-up time
Level sensing and safety mechanism	Vertical & horizontal obstruction detection Capacitance based liquid level sensing
Noise level	Less than 65 dB with cover closed
CPU & Display	P-IV with ( 1GB)RAM, 40 GB or Higher Hard Drive, CD-RW, suitable WIN OS 15 inch TFT color display
Keyboard	Standard keyboard & standard mouse
Printer	External: A4 size DeskJet color printer (Optional)
System interface	Analyzer - PC: RS-232C bi-directional, PC - Printer: USB (Min 2 Ports) & a Serial Port PC - Host computer via serial RS232 or TCP/IP
Item	Description
Throughput	100 test/hour with 1/2 reagent
System type	Discreet, open, fully automated, patient prioritized, selectable 1/2 reagent system
Sample	Serum, Urine, Plasma, CSF, Others
Measurement principle	Latex Enhanced Turbidimetric Immunoassay, Turbidimetric Immunoassay, Photometric (Rate/end point)
Onboard Reagent Positions	25 positions of 20 ml bottles for R1/R2
Programmable parameters	50 photometric tests
Assay modes	End Point, Fixed time (2-point), Kinetic Rate-A, Kinetic Rate-B
