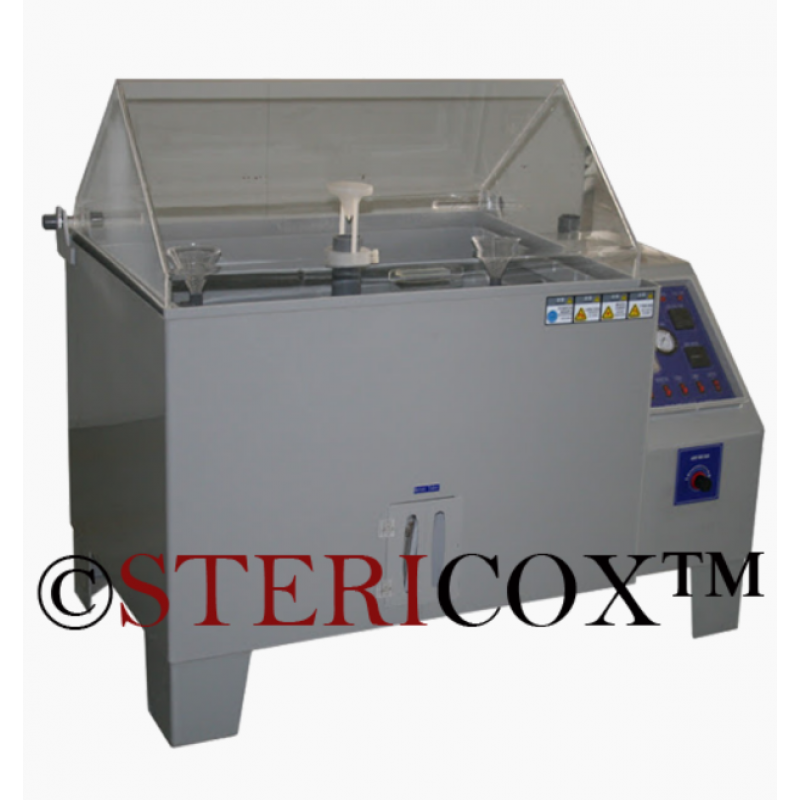

SALT SPRAY CORROSION TEST CHAMBER

Salt Spray Test Chamber or Salt Fog Test Chambers are made for testing corrosion resistant properties of metal parts, zinc plated nut and bolts, surface coating and paint. In such chambers coated samples are put under artificial corrosion environment inside the chamber to evaluate how suitable the coating surface is to use as protective finish on final products. Samples are examined under test at pre-determined amount of time; higher the corrosion resistivity longer will be the test time duration.

We are Salt Spray (fog) Test Chamber manufacturers and suppliers in India. These test chambers are ruggedly constructed with maintenance friendly design and suitable for testing as per IS / BS / ASTM and DIN standards. Exterior of these machines are made of stainless steel 304, while interior is made of stainless steel 316. To know the price, please email us your query with chamber capacity you require.

FEATURES & ADVANTAGES

• Easy loading and unloading of large samples
• Digital microprocessor based control
• Auto water refill system
• Auto Fog Collection System
• Over temperature alarm
• Low water alarm
• Durable construction
• Energy efficient design

TECHNICAL SPECIFICATIONS

Temperature range	35°C±1°C / 50°C ±1°C
Temperature of pressure barrel	47°C±1°C / 63°C ±1°C
Temperature uniformity	±2°C
Temperature fluctuation	±0.5°C
Temperature sensor	PT100
Humidity range	≥93% (No Controlled / Display)
Controller type	02 No. PID temperature controllers for chamber and pressure vessel
Timer	Digital timer 9999 hours
Canopy	Made of Acrylic Manual lifting
Chamber construction	PVC reinforced hard plastic sheets for complete corrosion proof construction
Brine tank (reservoir)	25 liters inbuilt brine tank Low water level indicator
Salt fog fallout rate	1 ~ 2ml per 80cm2 per hour
Spray mode	Continuous or intermittent spray
Compressed Air pressure	1.00 ±0.01kgf/cm²
Sample rackes	08 Nos. V type racks 12 Nos. support rods
Fog accessories	01. No. Spray tower 02 Nos. cup collectors
Standard fittings	Mains ON/OFF Pressure regulator Dial type pressure gauge Drain system Spray solenoid valve
Safety features	Over temperature protection Low water protection
Power supply	220 Volts 50 Hz

STANDARD DIMENSIONS / SIZE

Model	Dimension	Volume
STXSSC108	600 x 450 x 400 mm	108 Liters
STXSSC125	600 x 450 x 450 mm	125 Liters
STXSSC270	900 x 600 x 500 mm	270 Liters
STXSSC600	1200 x 1000 x 500 mm	600 Liters
STXSSC800	1600 x 1000 x 500 mm	800 Liters
STXSSC1000	2000 x 1000 x 500 mm	1000 Liters
