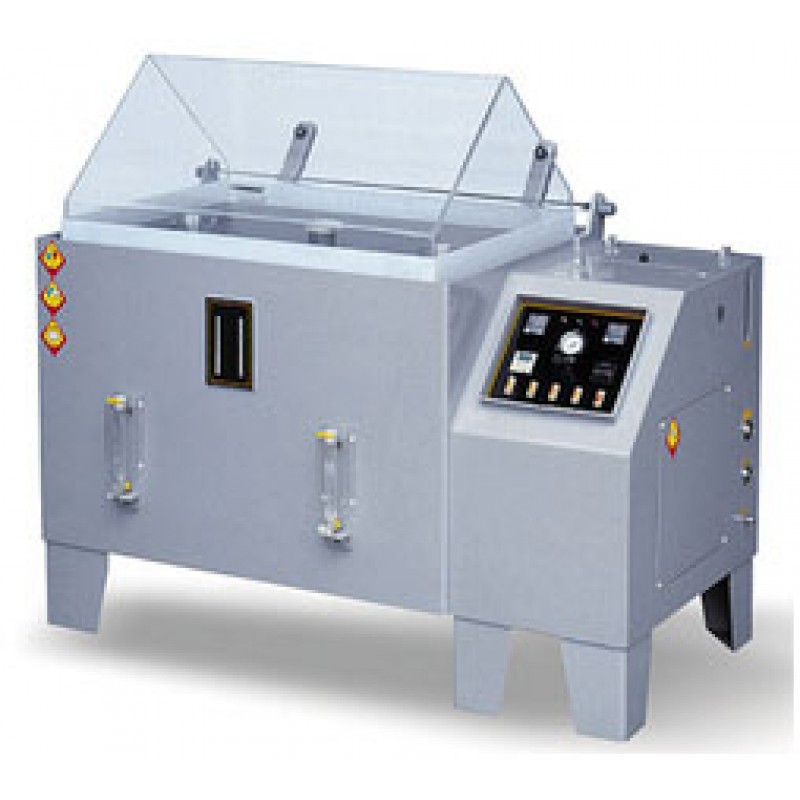

SALT SPRAY CHAMBER

Product Details :

Innovative Salt Spray Test Chamber has been designed strictly as per the relevant standard to assess the ability of rust proofed components to withstand corrosion due to atmosphere conditions. It is Double Walled. (Stainless Steel 316 inside and Outside also Stainless Steel) with glasswool insulation.

• Salt Spray Test chamber can also be fabricated out of thick acrylic sheet
• Salt solution is kept at the bottom of the test chamber
• Overhead tank one side of the test chamber and is provided with a valve to maintain constant water level in the tank
• Air atomizer is used to create salt fog conditions in the chamber
• Air pressure is maintained at 0.2 to 0.8Kg/cm2 to achieve desired density of fog in the test area
• Bubble column is provided in the air supply line after filter regulator to increase humidity of air entering the chamber above 80%R.H
• Ensures non-blocking of air nozzles due to salt deposition
• Stainless steel hanger is provided to hang or hold the component under test as per requirement
• Measuring disc is provided in the chamber to check fog concentration so as 1 to 2 ml of condensate is collected in the disks per hour
• Total test period is 50 hours with two intervals of 24 hrs. and 1 hr. drains in between
• TEMP – AMBIENT  : 70ºC
