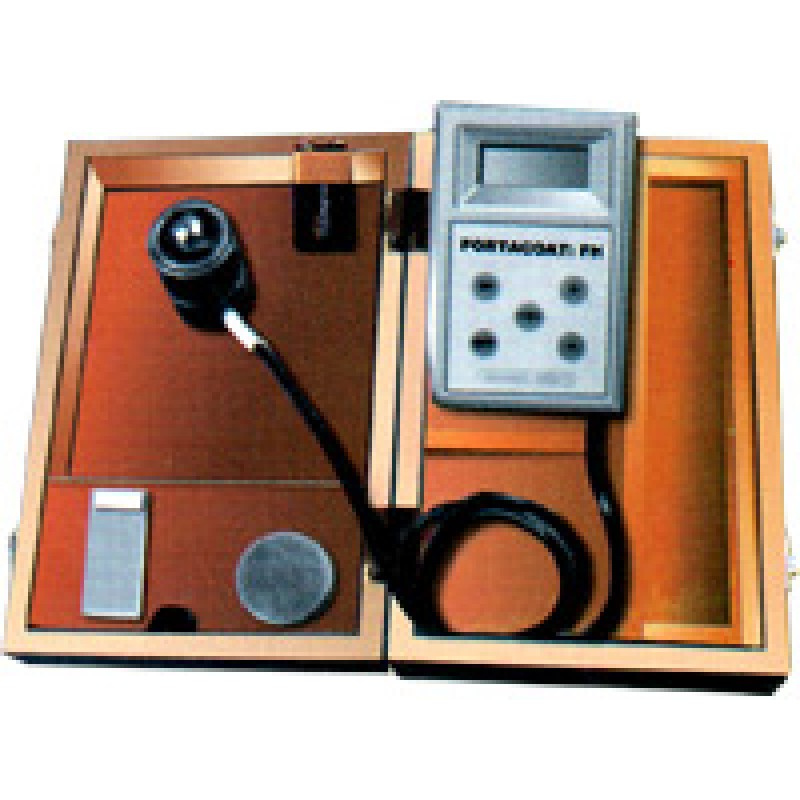

COATING THICKNESS GAUGES
Product Details :
Applications :
- Paint Coating
- Enamels
- Plastics
- Lead Lining
- Rubber Lining
- Glass Lining
- FRP Lining
- Tar coating on Iron & Steel.
Salient Features :
- Calibration at a touch of a Button for User Friendly Operation.
- Reads any coating on a ferrous surface.
- Microprocessor control for stability.
- Sensor complete with applicator for curved surface work.
- Clean environment, Portable Maintenance, Free Inspection Technology.
Integrated Microprocessor - Auto Power Off
Technical Data :
| Range | 0-12mm |
| Resolution | 10.01 mm (10 microns) |
| Accuracy | t 0.02(0-1) +2%(1 -5) +2.5%(5-9) + 3%(9-12) |
| Min. radius | Convex 19mm / Concave 28mm |
| Min. area dia | 25mm |
| Probe | D 30 x L 50mm |
| Supply | Dry Bat. 6f22 / 9V |
| Check | Battery to be replaced when display shows BAT |
| Work Temp. | 0 to 50 deg. C |
| Size (mm) Inst. | 127x85x40 400 |
| Weight (gsm) | 400 |
Coating Thickness Gauges
- Views: 168
-
Krutam Technosolutions - Product Code: KT00000011
- Availability: In Stock
- ₹0
