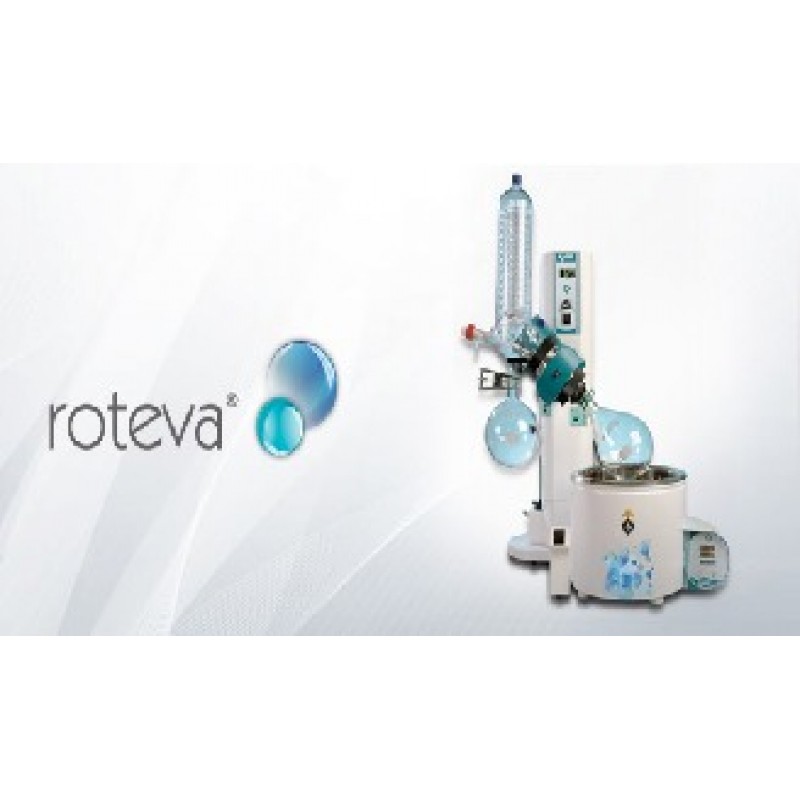

Rotary Vacuum Evaporator

Rotary vacuum evaporators are efficient laboratory distillation units for applications like standard solvent distillations, concentration of reaction mass or solution, separation of solvents from extracts, crystallization and powder drying. Along with carefully designed accessories it becomes a work horse in any laboratory.

Features

  • Motorised lift with by pass.
  • Water cum oil Bath with seamless inner tank and clear Bottom.
  • Bath range up to 180°C & capacity speed 30-270 RPM.
  • PID Temperature controller.
  • Supplied with standard 1 L Pear shaped evaporating and round bottom receiving flasks.
  • PTFE feed tube.
Product Information

Item

Specification

Item

Specification

Heating bath dimensions

Ø 230 x 130 mm

Power supply

230 V, AC, 50 Hz

Volume of heating bath

4 lit. Approx.

Rotation speed

30 to 270 rpm

Bath heater capacity

1200 Watts

Rotation speed display

Yes

Heating bath controller

PID with display for set & actual temp.

Lift

Motorised

Bath temperature range

Ambient + 5 to 180°C

Manual lift (When power fails)

Yes

Temperature accuracy

± 2°C

Height adjustment

170 mm Approx.

Independent safety cutout

@ 190 °C

Flask ejector

Yes

Heating bath material

SS 304

Condenser support

Yes

Min / Max flask size

50 ml / 3000 ml

Foot print

220 cm²

Cond. cooling area: D, V

1200 cm²

Glass sets available*

D, V

Environmental conditions (Temp.)

10 to 40°C

Threaded connectors for utilities

Yes

-

-

Feed stopcock & tube made of

PTFE

-

-

Environmental Conditions (% RH)

Max 80% NC



Ordering Details

Model

Item

Capacity

8763.RD0.000

ROTEVA – 63 series with Diagonal Glass Set (D)

3 L Max

8763.RV0.000

ROTEVA – 63 series with Vertical Glass Set (V)

3 L Max
