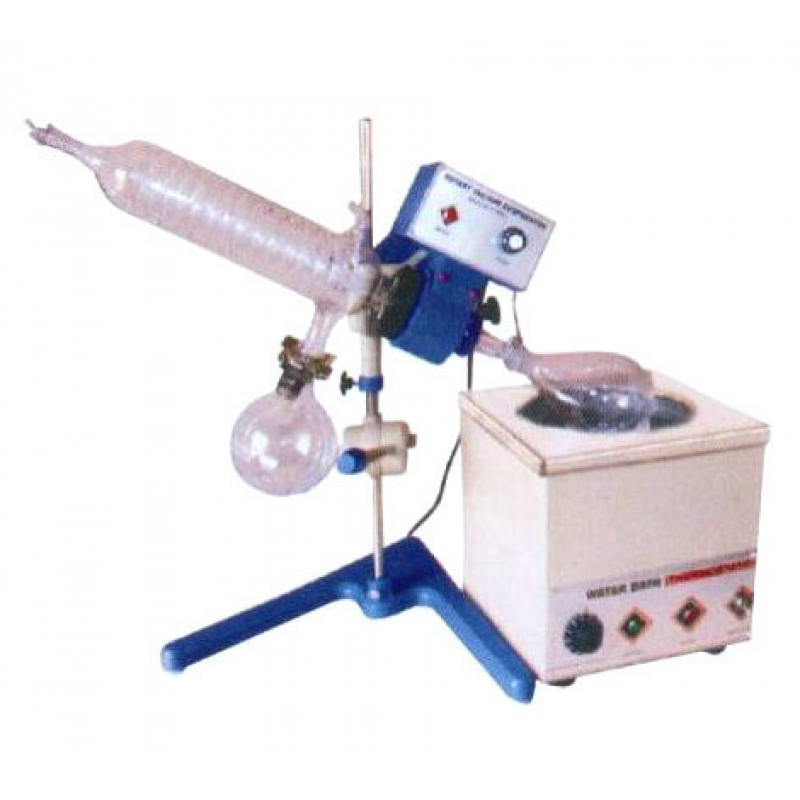

Rotary Vacuum Evaporator
We have in store for our customers Rotary Vacuum Evaporators that consist of an evaporating flask by the DC motor in a heating water bath. Vacuum distillation of the solvent at high as well as low temperature can be achieved quickly by using variable speed motor. This prevents foaming and bumping of liquid into evaporating flask as well as distillation under controlled atmosphere. Also, the evaporating flask is pear shaped and gives a large surface area of evaporation. It is clamped to a glass duct that goes through drive unit and is produced into the condenser, which is fitted with the standard joint at the top and bottom for the receiver flask and the unit is fitted with quick action.
Optional Accessories:
- Water bath thermostatic or digital temp, controller
- Oil free vacuum pump
- Micro attachment Set
Rotation speed | 20- 140 rpm. |
Evaporating flasks | 800ml |
Temperature range(water bath) | Max. 100°C |
Temperature accuracy | ± 1 °C |
Condensing surface | 1200cm2 |
Operating voltage | 230V; 50Hz |
Power consumption | Max. 2000W |
