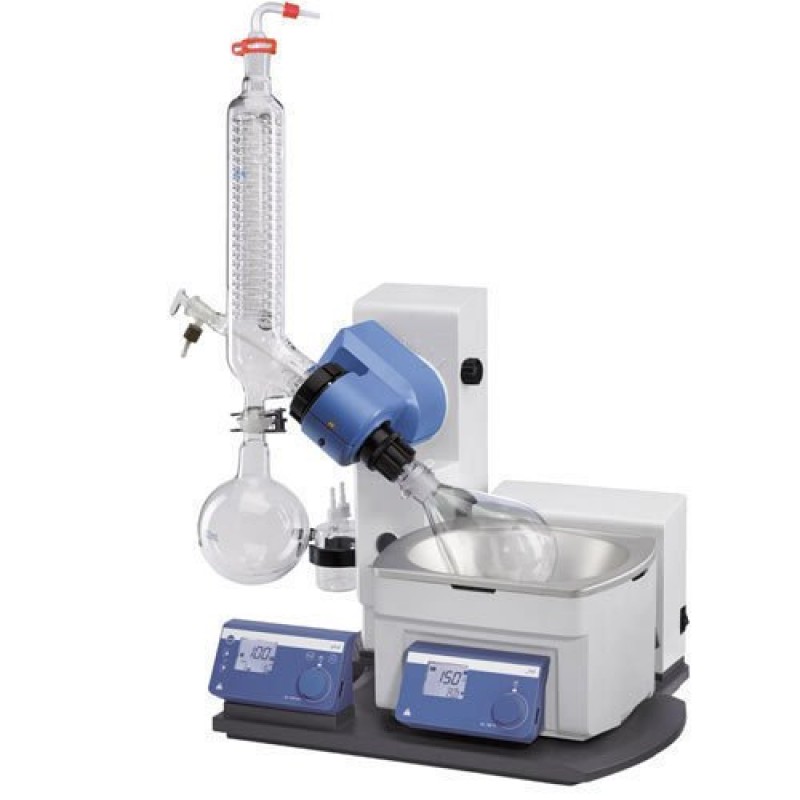

Rotary Vacuum Evaporator

Product Details :

Specification:

This model of evaporator is supplied complete with geared driven non sparking noiseless motor offering smooth speed control by analog knob 20 to 200 RPM. Jack arrangement is fitted on tapered front base for positioning glass assembly. Double walled water bath thermostatically controlled temp. , glass condenser double coiled with three opening for vacuum and cooling , pear shaped evaporating flask capacity max. up to 2000ml, receiver flask capacity 1 liter fitted with a ball joint, feeding tube and vapour path tube provided with a Rubber tube, Pressure tube, Seal, Clips and Spring a complete working unit. Specially designed to work on 220 Volt AC.

Accessories included with working unit:

a) Vertical condenser doubled coiled with two outlets for water circulation. With S-35 ball at bottom for

connecting the receiving flask, quick fit type joint at top for vacuum, cock for feeding tubes on one side while the other side will be connected to motor with ring.

b) Cone adaptor for condenser to vacuum pump.

c) Vapour path tube B-24, B-29.

d) Gasket seal for vapour tube.

e) Gasket seal for specific chemicals.

f) Receiving flask with S-35 cup joint capacity 1000ml.

g) Evaporating flask capacity 800ml.

h) Wire clip to hold vapour tube and boiling flask.

i) Ball joint clip S-35 with screw lock.

j) Water bath double walled with Digital temp.Control.

k) RPM shown as digital.

Additional Information:

• Item Code: BLTE-440
• Production Capacity: 2 litre/hour
• Delivery Time: Within one week
• Packaging Details: Wooden crate
