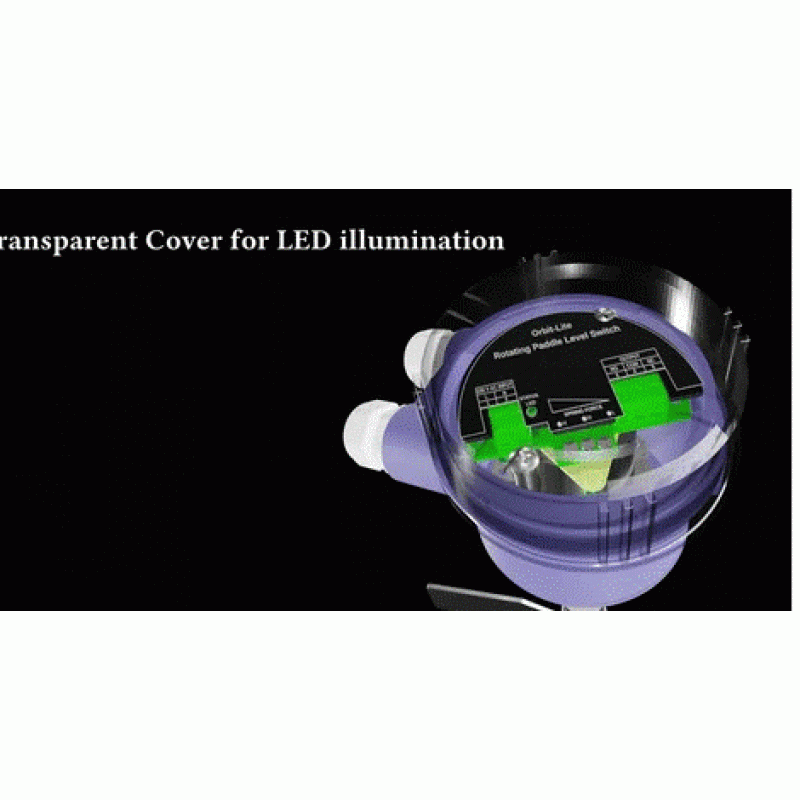

Rotary Paddle Level Switch
Product Details:
Switch Type | Relay |
Usage/Application | Industrial |
Pole And Throw Specification | SPDT |
Mounting Options | Both Side and Top |
Current Rating | 6Amp potential-free at 230 V AC |
Model Name/Number | Orbit-lite |
Brand | Sapcon |
Rotary paddle type level switch is a level limit switch used to detect powders and granular solids. A compact and light weight body with plug-n-play setup makes installation operation easy.
Application Temperature Range: up to 200°C
Outputs: : 1NO, 1NC 6Amp potential-free at 230 V AC
Switching: Single-point switching
Suitable for Bulk Density ≥ 0.5g/cm3
Foldable paddle mechanism for easy installation
Probe Length Range: 100mm - 1000mm
Maximum Horizontal Load: 125 Nm
Wetted Parts: Aluminum, SS-3
