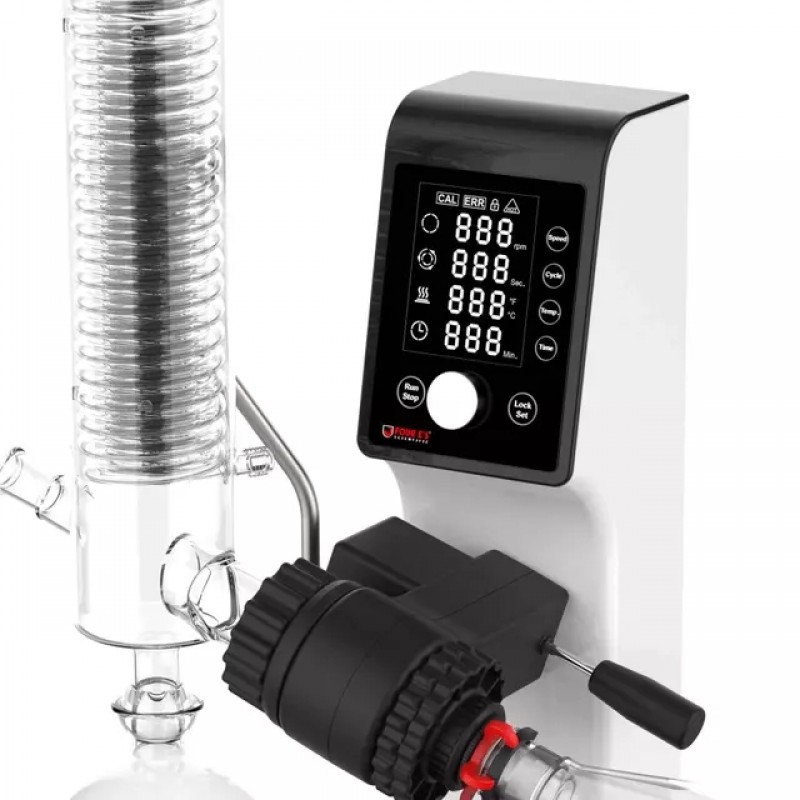

Rotary Evaporator

The RV131 Rotary Evaporator has wide applications in chemical, pharmaceutical, and biotechnology industries, R&D labs, and for quality assurance. The Large LED display along with touch keys and an adjustable knob helps you easily set process parameters. The Double-layer vertical condenser with 1500cm² cooling surface provides efficient vapor collection and sample recovery.

Features:

●Large LED display to easily set and monitor process parameters

● The touch keys and adjustable knob let you easily set the Rotation speed, heating temperature, operation time, and cycle times (clockwise and/or counterclockwise cycles).

● The device also comes with a mistouch prevention lock to avoid changes through accidental touch

●The adjustment knob can be turned fast or slow to change parameters rapidly or accurately.

●The 5L water-oil heating bath with heating temperature range of up to 180℃ (oil)

● The device comes with a Brushless DC motor with rotation speeds ranging from 20 to 320 rpm

●Comes with PID temperature controller, overheat protection, dry-burning protection, and automatic power-off functions

● Double-layer vertical condenser with 1500cm² cooling surface for efficient vapor collection and sample recovery

● High elastic graphite filled PTFE seal and compression spring bring excellent sealing as well as high-temperature, corrosion, and abrasion resistances.

● Manual lift for precise positioning of the glassware; the lifting height ranges up to 180mm and the tilt angle range is 0-360° (evaporation flask can be positioned on the left or right side)

●  Ejection mechanism ensures easy removal of evaporating flask

Specifications :
