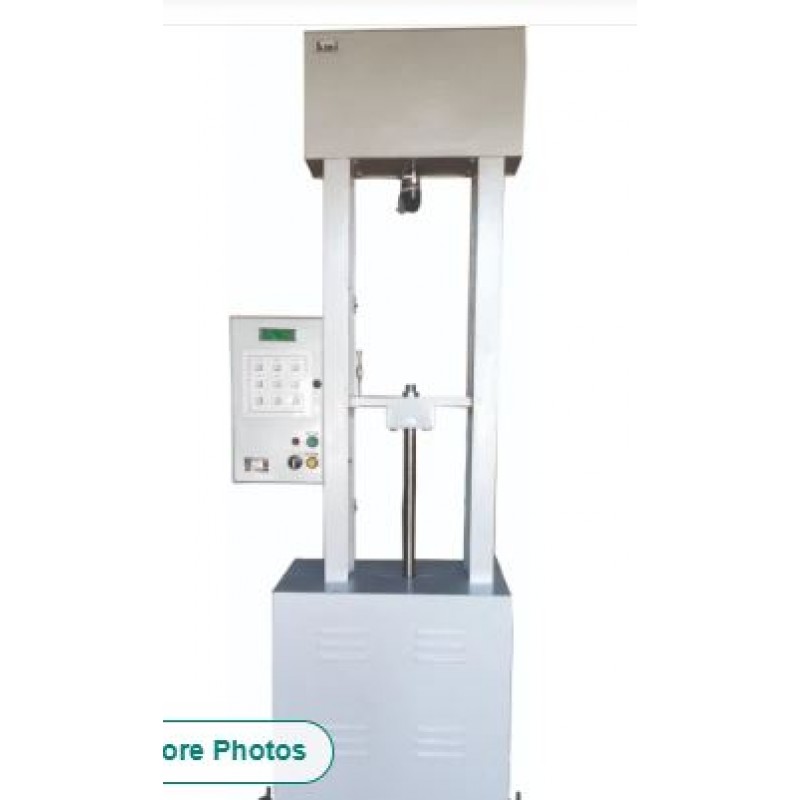

Rope Tester Machine
Product Details:

Usage/Application	ALL
Capacity	up to 200KN
Phase	Single
Material	ALL
Display Type	Computerized
Elongation scale smallest division	1 mm
Accuracy of measurement	+/- 1% AS per IS 1828
Power supply	3 PH 440 V 50 c/s A
Brand	KMI
Power Source	Electric

We offer wide range of Rope Tester that is used for determining the tensile strength and elongation of fabric (model HF) and ropes (model HR). Moreover, our range of tester is highly appreciated for its superior testing features and cost efficiency. Further, our range of products is stringently tested on various parameters so as to ensure quality products at the end.

Tensile Tester for fabric (Model HF) and ROPE (Model HR)
An electrically operated floor mounting machine for determining the tensile strength and elongation of fabric (model HF) and ropes (model HR).
Available in the following capacities:
0-1000 kgf x 2 kgs with an additional range of 0-500 kf x 1 kg
0-2000 kgf x 4 kgs with an additional range of 0-1000 kgf x 2 kgs
Traverse speeds 100, 150, 300 and 450 mm/ min through multi-speed gear box.
Grip separation:
Model HF – Min, 100 mm, Max , 400 mm
Model HR – to suit your requirements
Travel of moving grip Model HF -300 mm, Model HR -1200 mm
Over travel safety included
