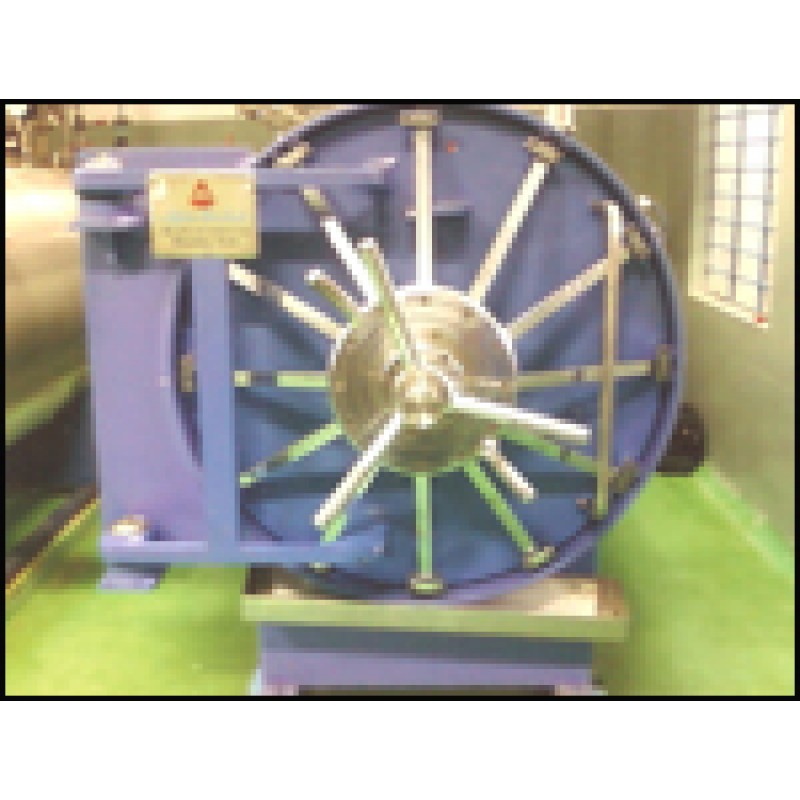

Retort

Product Details :

Inner size 1000mm” Dia x 1000mm” Depth

Optional

• Steam Boiler, Pressure switch, steam reservoir, water level indicator
• Air Compressor with receiver & centrifugal high pressure pump with fittings
• Auto control with user friendly PLC

Construction

 Completely made of stainless steel, ceramic wool insulation with S.S. Cladding supplied with material loading S.S. basket for comfortable loading and unloading operations, water drain, gland nut provision, safety valves, vacuum breaker, 4” dia pressure gauges, railings, stoppers and other special fittings like built-in S.S. Plumbing line which has provisions for automatic steam / air injection through solenoid valves controlled by simple PLC or bypass system for manual operation. The steam and air drawn from external source is injected by specially designed nozzles for uniform distribution of temp. & pressure inside the chamber cooling water is sprayed specially designed sprinklers placed at suitable distance to cover all the area for rapid cooling within 10 mts though high pressure pump. The cold water inlet valve and the drain are manually operated. All the controls are done as per the chamber temperature.
