Refrigeration Test Rig

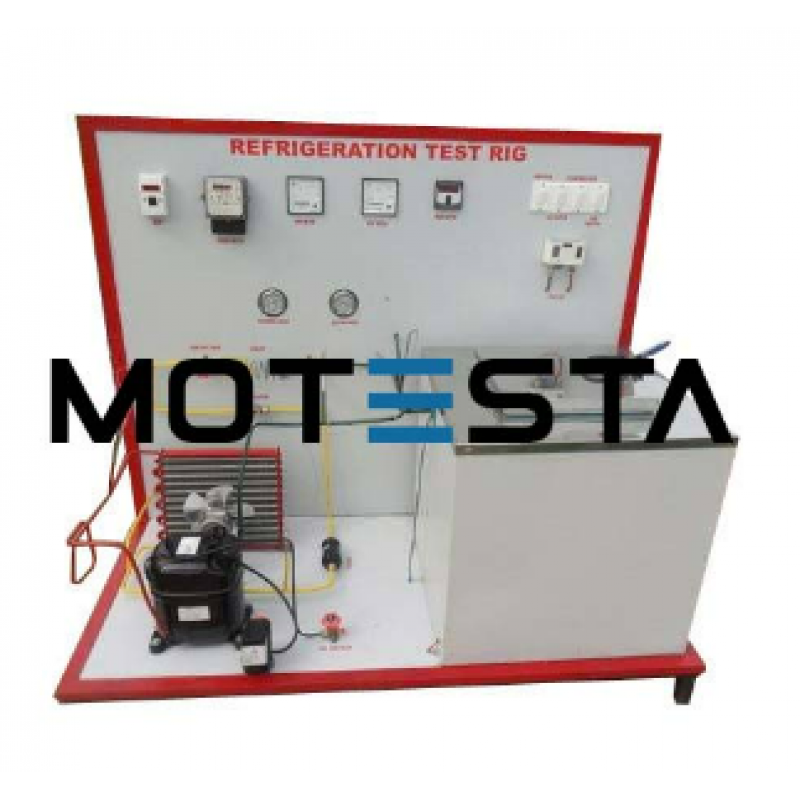

This Laboratory scale working model housed on a M.S. Square tube frame and further mounted on a wheels (CI) with instrumentation panel is used i) To study the vapor compression refrigeration cycle ii) To calculate Co-efficient of performance (COP).

01. Hermitically Sealed Compressor
Capacity	: 1/3 Ton
02. Air Cooled Condenser
Capacity	: 1/2 HP
03. Condenser Cooling Fan
Capacity	: 1/83 HP
04. Rotameter
R 134a Gas (Echo Friendly Gas)	: 1 No
05. Hand Shut Off Valves
Size	: ¼
06. Filter Drier	: DM 50 ¼
07. Energy Meter	: 1 NO.
08. Thermostat	: 1 NO
09. Pressure/compound Gauges:
1 NO. Each Range	: 0 to 300 psi/-30 Hg to+150 psi
10. Measuring Instruments
a) Digital Temperature Indicator	:-30 to 199.9 deg. C.
Optional	: At Extra Cost Line Voltage Corrector
Capacity	: 2KVA
Output	: 230V+/- 10%
