Refrigerated Circulating Baths

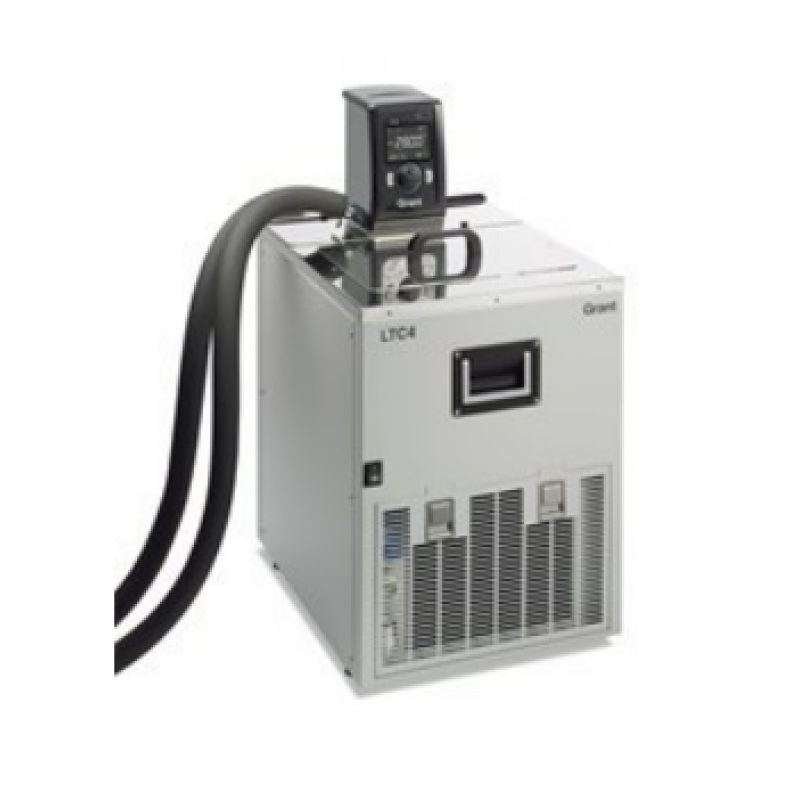

The Grant Optima™ TX150 series of digitally controlled refrigerated circulating baths provides outstanding performance for routine and sophisticated applications requiring accurate temperature control in the range of -47 to 100°C.

Grant TX150 series refrigerated systems combine the powerful and versatile Grant Optima™ digital heating circulator TX150 with a  rugged stainless steel refrigeration unit with different facilities and working volumes.

The Grant Optima™ TX150is high-performance programmable digital heating circulator with an exceptionally simple user interface. This allows fast set-up of multiple parameters through a powerful menu system and provides sophisticated control for temperature-controlled applications.

The TX150 has USB connectivity to a PC or laptop. It is programmable with Labwise™, a software program to set all parameters, including programs, via the PC. Labwise™ also features real-time status windows, a graphic display of the controller's performance as a program is run, and allows data to be logged for future recall and analysis.

• Powerful pump for external circulation, maximum flow 18 L/min, maximum pressure 310 mbar

• Full colour QVGA TFT display

• Setpoint, plus three adjustable preset temperature values

• Timer function for reaction timing, 99 hours, 59 minutes, with audible alert and heater control

• Liquid selection safety feature adjusts for temperature range or heater power

• Fault indication display

• Programmable relay

• Two-point user recalibration of internal and external probes (TXPEP, TXSEP)

• Off-set adjustment for optimal isothermal performance

• USB connectivity

• Optional Labwise™ PC software for program set-up, data-logging and real-time graphing

• Can be programmed to switch the refrigeration on and off during a heating and cooling program

• Memory capacity for one program of up to 30 segments

• Choice of languages: English, French, German, Spanish and Italian

• Low liquid protection by float switch

• Adjustable over-temperature cut-out

• Convenient accessory clamp available for fitting to vessels

• Cooling/heating range: -47 to 100°C (dependent on refrigeration unit selected)

• Stability ± 0.1°C

Note: The refrigeration unit can be switched off independently of the circulator to allow heating only applications. All the refrigeration base units can be used up to a maximum temperature of 100°C.
