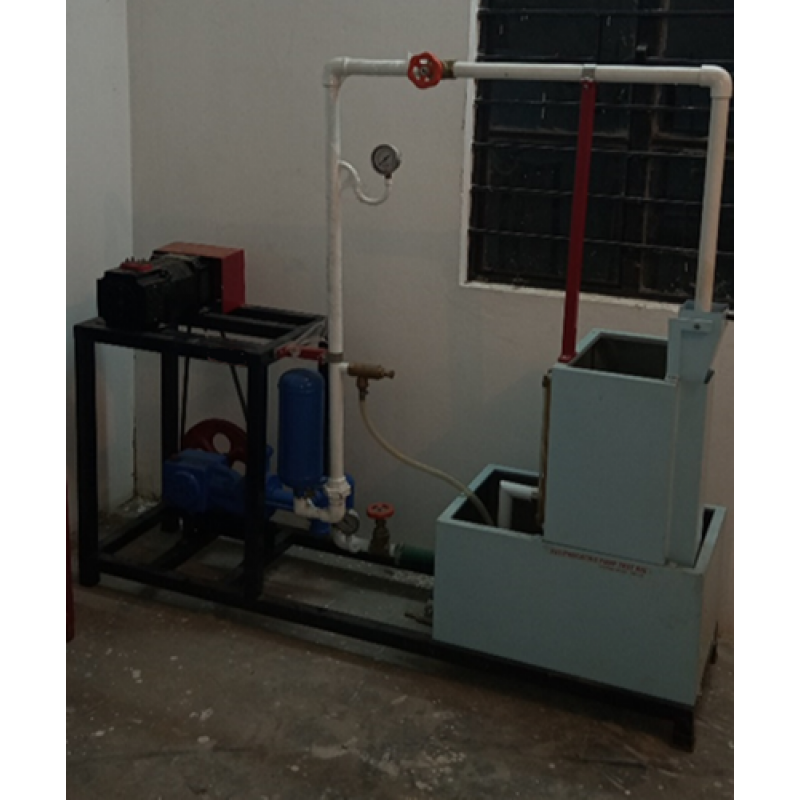

Reciprocating Pump Test Rig

Product Details:

Country of Origin	Made in India
brand name	saini
model number	SSIFMHL-011C
- Pump	Double acting single cylinder, capacity 1HP, Speed 250 RPM (max.) , head 5 kg/cm2 ( max.) Everest
- Drive	1 HP AC motor With speed control Crompton make.
- Sump tank	800 x 500 x 400 mm size , Capacity 160 liters approx. (stainless steel material )
- Measuring tank	350 x 500 x 400 mm size, Capacity 70 liters approx, Fitted with Piezo-meter Tube scale.(stainless
- Medium flow	Clear water
- Gauge	One piece vacuum gauge And one piece pressure gauge
- Stop watch	Electronic type
- Pressure gauge	Bourdon type , range 0-4 kg/cm2
- Vacuum gauge	Bourdon type , range 0-760 mm of Hg
- Tank material	(stainless steel material )
- Pipe fitting	GI pipe.

SAINI SCIENCE INDUSTRIES manufacture of Reciprocating pump test rig. (Variable speed with AC motor).
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality of Reciprocating pump test rig. (Variable speed with AC motor). The present Reciprocating Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Double acting, Single Cylinder Reciprocating Pump coupled with a AC Motor Power input to the AC Motor is varied by means of a VARIAC to vary the RPM of motor. A RPM Indicator with Proximity sensor indicates the RPM of Pump. Flow of water is measured by using measuring tank and stop watch. Vacuum gauge is fitted on suction line and Pressure gauge is fitted on delivery line to measure the pressure.
