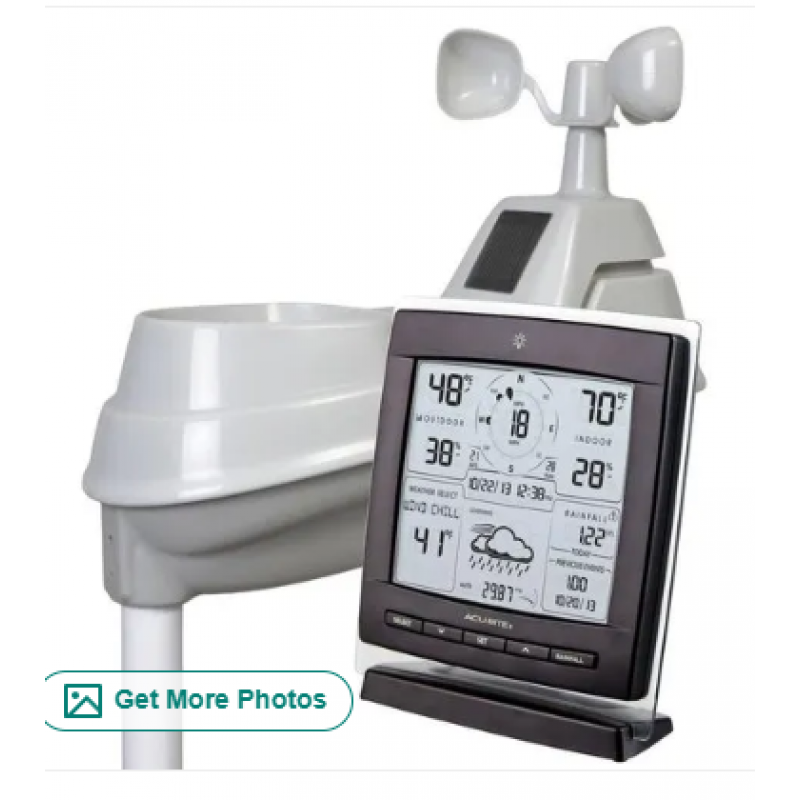

Rain Sensor Weather Station
Product Details:

Collecting Area	325 sq mm
Sensitivity	0.5 mm or, 0.2 mm
Resolution	0.5 mm
Accuracy	Better than +5%
Sensor	Tipping Bucket Rain Gauge
Sensing	Magnet and Reed Switch
Operating Temperature	-40 Degree C to +50 Degree C
Rim Diameter	203 mm

With the help of our experienced team members, we have been able to manufacture and supply a qualitative range of Rain Sensor Weather Station. Robustly constructed these devices are extensively acclaimed for their precision measurements, robust construction and longer functional life. Besides, these need very less maintenance and care and provide accurate weather data in a sophisticated yet easy-to-read format.
Principle of Operation:
It uses a tipping bucket mechanism to produce a contact closure every time it receives a predetermined quantity of rainfall. The body and funnel are made of FRP (Fiber glass Reinforced Plastic), rim is made of gun metal. All parts having contact with water are made of stainless steel. Each tip of the bucket produces an on-off output when the magnet passes over the reed switch..
