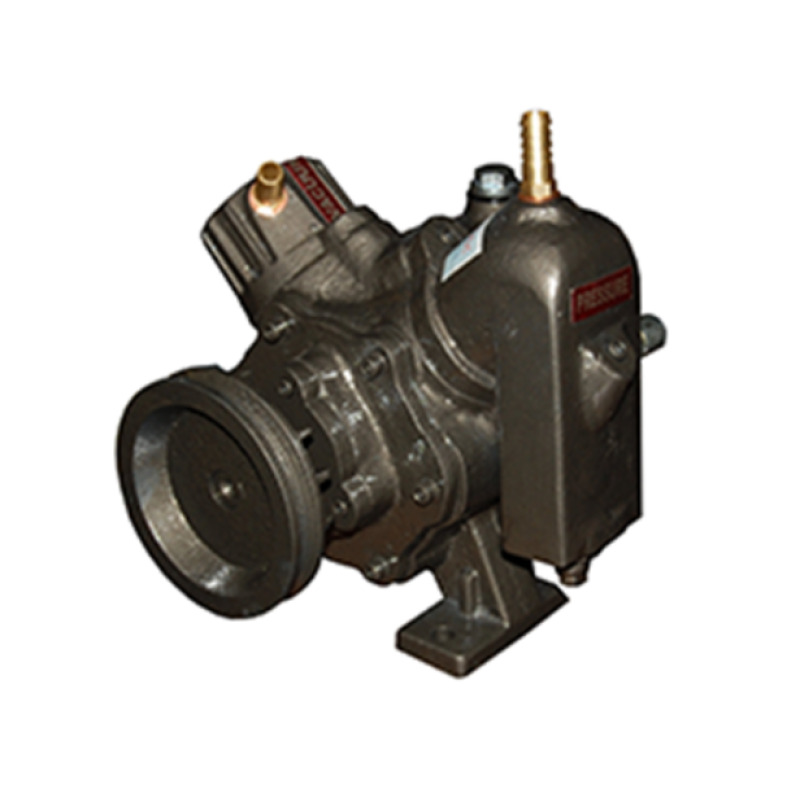

ROTARY VACUUM PRESSURE PUMP

INTRODUCTION

Shenovac Rotary Vacuum Pressure Pumps are combine in them double features of suction & pressure and hence the same unit can be employed for either purpose. These have low oil consumption and are compact in design, noiseless & care free in operation and easily maintainable.

The main assembly consists of a stator with a rotor mounted eccentrically in it. The rotor is provided with eight vanes, which are free to slide and move in & out of the slots, by centrifugal action. When in 'out'position these press against the inner walls of stator. When the rotor rotates, these vanes sweep the air eight times in a single revolution creating vacuum & pressure simultaneously.

The design provides for self-lubrication of all the important points and the oil thus used does not contaminate the air, but is baffled from the exhaust, gets collected and returns to the oil chamber.

Each and every unit is fully engineered with all its components immaculately nished and matched. The walls of all components are suitably strengthened so as to render su ciently long life even while working under adverse conditions. All the components are machined, drilled and nished with jigs and xtures and are hence easily replaceable. All these distinguished features therefore, add up to make these pumps an indisputable choice of all reputed companies and concerns.

APPLICATIONS:-

These are widely used for Vacuum Distillation, Extraction, Filtration, Bottle Filling, Drying, Photo Printing, Glass Blowing, Pharmaceutical, General Lab. Works, Food Processing, Transfer of Liquids, Vacuum Forming & Blister Packing Machines etc. etc.

Specications

(Ultimate vacuum at the intake with McLeod Gauge)

Model No.	Reqd HP	Free Air Displacement in lpm	Ultimate Vacuum in mm Hg	Maximum Pressure in PSI
SVP-70	1/4	70	700	10
SVP-150	1/2	150	700	15
SVP-300	1	300	685	20
SVP-500	2	500	685	20
SVP-1000	3	1000	660	20
SVP-1500	5	1500	660	20
