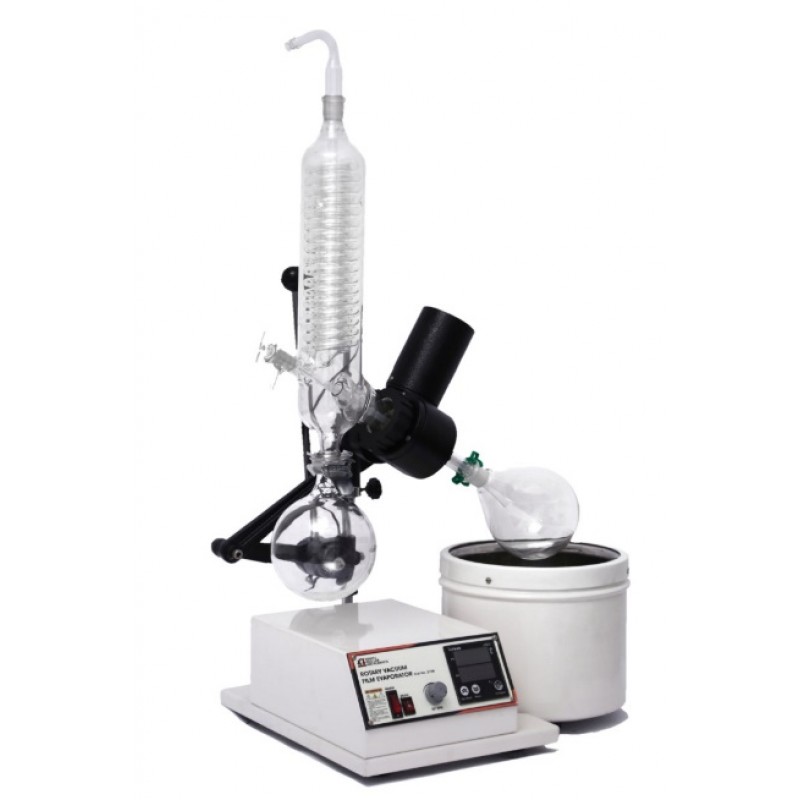

ROTARY VACUUM EVAPORATOR WITH VERTICAL CONDENSER
MODEL NO.: KI-2198-V
- Kshitij Innovations brings to your work space a ROTAVAPTM state- of- the art technology, an approvingly labor- saving and a superior Rotary Vacuum Film Evaporators.
- The technology comes in handy to separate solvents in a mixture and our product provides an exceptionally high bath volume of 4L. Keeping intricacies in mind, the product has been designed to make it available for a diverse range of organic, pharmaceutical, F&B, chemical and analytical labs.
- Tailoring to present- day concerns, the product is constructed to save bench-space and unfailingly confirm to standards.
- Model 2198 is detailed to have microprocessor-based controllers, programmable temperature controller, and with a vivid FND display, our evaporators stand out to give the finest and clear-cut precise performance.
- The product’s modular design makes it best suited to work with KISILTM laboratory glassware. Manufactured keeping in mind the user’s convenience, we provide a 1-year warranty on this product.
- Aiming at innovation, and in pursuit of advancing technology, our ROTAVAPTM Rotary Vacuum Evaporators are already establishing a niche in the market!
Specifications:
Model No. | KI- 2198-V | KI- 2198- 2V | KI- 2198- 3V |
Rotation
Speed | 20-280 | 20-280 | 20-280 |
Timer | 99:59
(HH:MM) | 99:59
(HH:MM) | 99:59
(HH:MM) |
Display | 16x2 LCD Display
(RPM | Temp. &
Timer) | 16x2 LCD Display
(RPM |
Temperature | Ambient to 180oC (Acc.
± 2oC) | Ambient to 180oC (Acc.
± 2oC) | Ambient to 180oC (Acc.
± 2oC) |
Keypad | Soft Touch | Soft Touch | Soft Touch |
Bath & Heater
Capacity | 4 Liters (1000
Watt) | 4 Liters (1000
Watt) | 4 Liters (1000
Watt) |
Boiling Flask
Capacity | 1 L | 2 L | 3 L |
Drive
System | DC Motor | DC Motor | DC Motor |
Power | 220 V ± 10% 50
Hz | 220 V ± 10% 50
Hz | 220 V ± 10% 50
Hz |
Dimensions | 815 x 408 x
890mm | 815 x 408 x
890mm | 815 x 408 x
890mm |
Weight | 19.525 KG | 19.525 KG | 19.525 KG |
