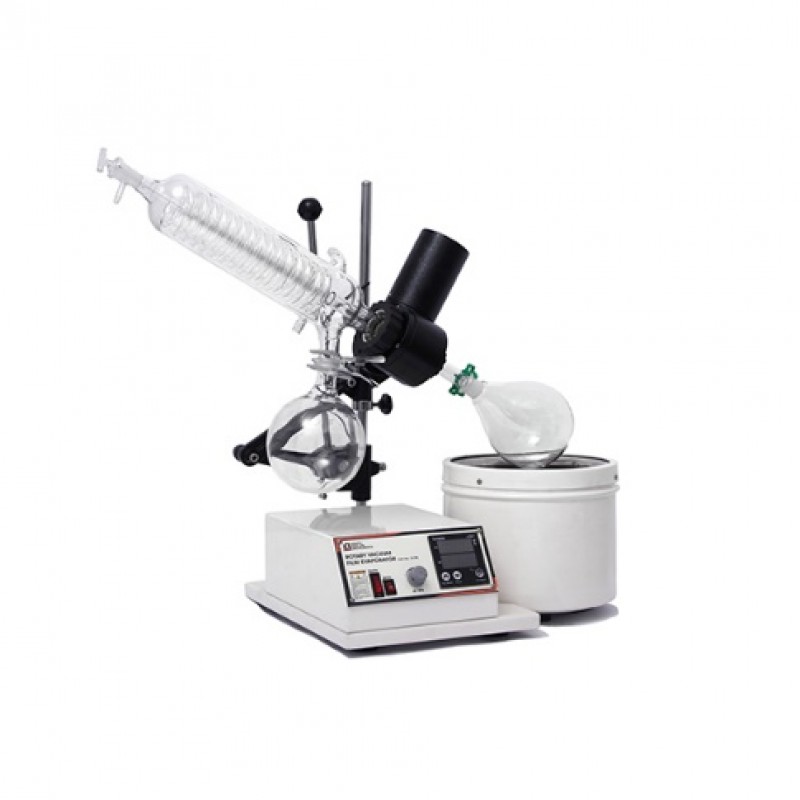

ROTARY VACUUM EVAPORATOR WITH HORIZONTAL CONDENSER
MODEL NO.: KI-2198
- Kshitij Innovations brings to your work space a ROTAVAPTM state- of- the art technology, an approvingly labor- saving and a superior Rotary Vacuum Film Evaporators.
- The technology comes in handy to separate solvents in a mixture and our product provides an exceptionally high bath volume of 4L. Keeping intricacies in mind, the product has been designed to make it available for a diverse range of organic, pharmaceutical, F&B, chemical and analytical labs.
- Tailoring to present- day concerns, the product is constructed to save bench-space and unfailingly confirm to standards.
- Model 2198 is detailed to have microprocessor-based controllers, programmable temperature controller, and with a vivid FND display, our evaporators stand out to give the finest and clear-cut precise performance.
- The product’s modular design makes it best suited to work with KISILTM laboratory glassware. Manufactured keeping in mind the user’s convenience, we provide a 1-year warranty on this product.
- Aiming at innovation, and in pursuit of advancing technology, our ROTAVAPTM Rotary Vacuum Evaporators are already establishing a niche in the market!
Specifications:
Model
No. | KI-
2198-H | KI-
2198-2H | KI-
2198-3H |
Rotation
Speed | 20-280 | 20-280 | 20-280 |
Timer | NA | NA | NA |
Display | FND
Display (Only for Temp.) | FND
Display (Only for Temp.) | FND
Display (Only for Temp.) |
Temperature | Ambient
to 180oC (Acc. ± 2o C) | Ambient
to 180oC (Acc. ± 2o C) | Ambient
to 180oC (Acc. ± 2o C) |
Keypad | NA | NA | NA |
Bath
& Heater Capacity | 4
Liters (1000 Watt) | 4
Liters (1000 Watt) | 4
Liters (1000 Watt) |
Boiling
Flask Capacity | 1
L | 2
L | 3
L |
Drive
System | DC
Motor | DC
Motor | DC
Motor |
Power | 220
V ± 10% 50 Hz | 220
V ± 10% 50 Hz | 220
V ± 10% 50 Hz |
Dimensions | 815
x 408 x 890mm | 815
x 408 x 890mm | 815
x 408 x 890mm |
Weight | 19.525
KG | 19.525
KG | 19.525
KG |
