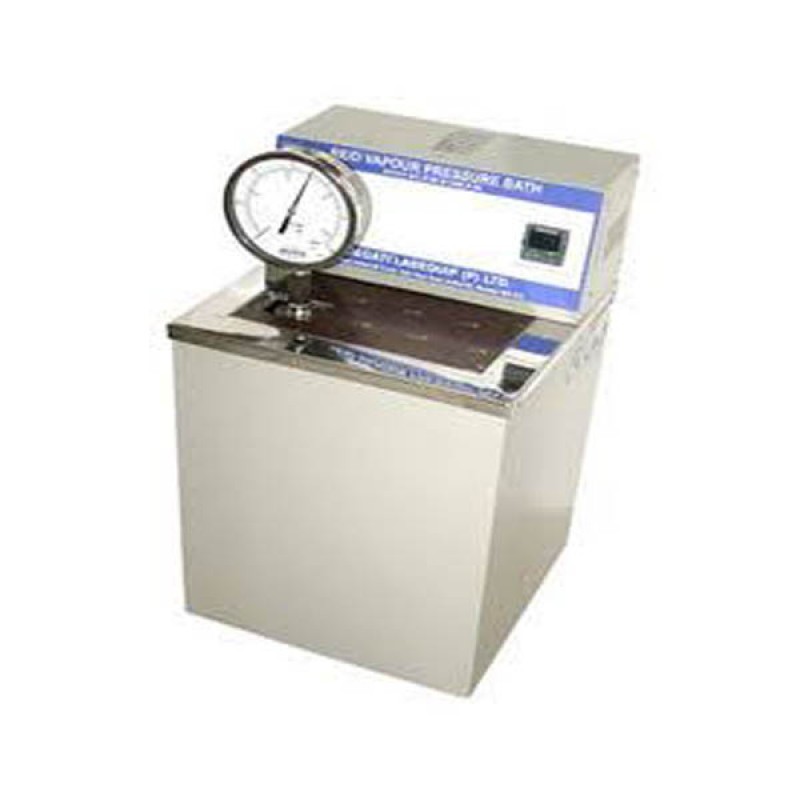

IP 69 & IS 1448 (P:39) 1967). Used to determine the vapour pressure of volatile non-viscous petroleum products except liquefied petroleum gases. The Vapour pressure bomb is made of brass heavily Chromium plated and consists of air chamber and gasoline chamber of definite dimension and volume ratio. A pressure gauge of required range is fitted above the air chamber. The joints are made leak proof by neoprene washers. The water bath used is of such dimensions that the vapour pressure bomb may be immersed to at least 1 inch above the air chamber and maintained at a constant temperature of 100 deg. C +/- 1 deg. C. Reid Vapour Pressure Test Apparatus IP 69 & IS 1488 (P:39)

Bath only for single test with FHP Stirrer and with DIGITAL TEMP.INDICATOR CUM CONTROLLER but without bomb and accessories.

OPTIONAL ACCESSORIES:

Gauge for above any of the range 0-15 psi or 0-30 or 0-45 psi or 0-60 psi or 0-100 psi each range.
