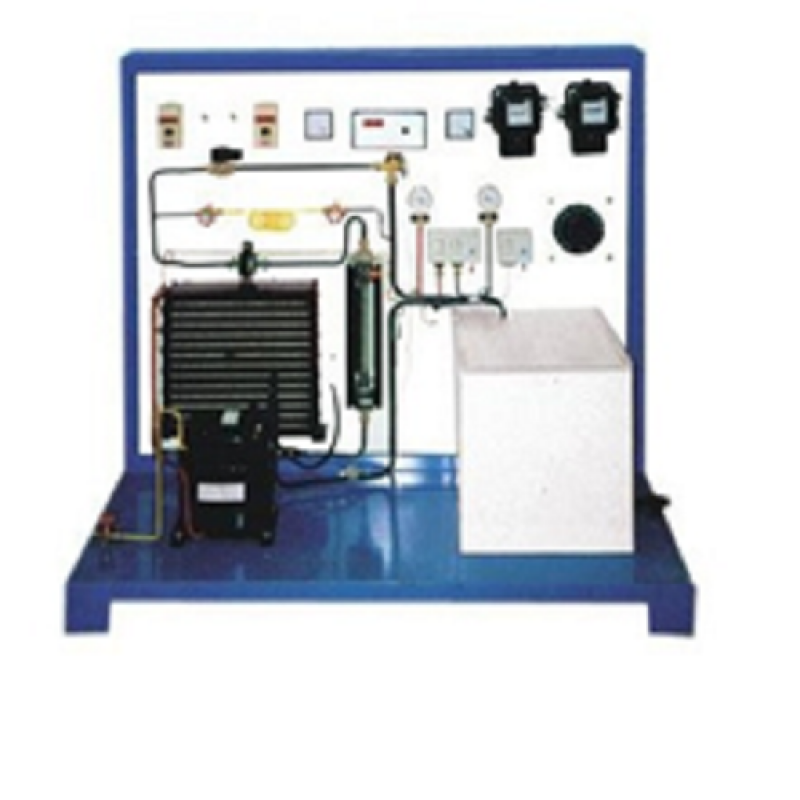

REFRIGERATOR TEST RIG

SPECIFICATION:-

Experimental Setup Compressor: Tone, Hermetically Sealed Compressor, Make Emerson Copeland/equivalent. Condenser: Coiled Tube Heat Ex Changer Acts As A Condenser. Expansion Capillary Copper coiled Evaporator Air cooled condenser with copper fins . Pressure Guage 0 To 300 PSI (R-134A) HP/LP Cut-Out with Thermostat & Rotameter: Both Capillary And Expansion Valve . Evaporator Coil: Coiled Tube Heat Ex Changer Copper Coil. Rota Meter: For Measuring Liquid Flow Of Refrigerant (digital On Extra Cost).Energy Meter: One Each For Power Measurement Of Compressor & Heater. Pressure Gauge : 2 Nos. For H.p. , L.p. Measurement Hp/ lp Cutout : I No. To Suit Compressor. Service Valve Needle Type: 1 Number Suitable Filter.
