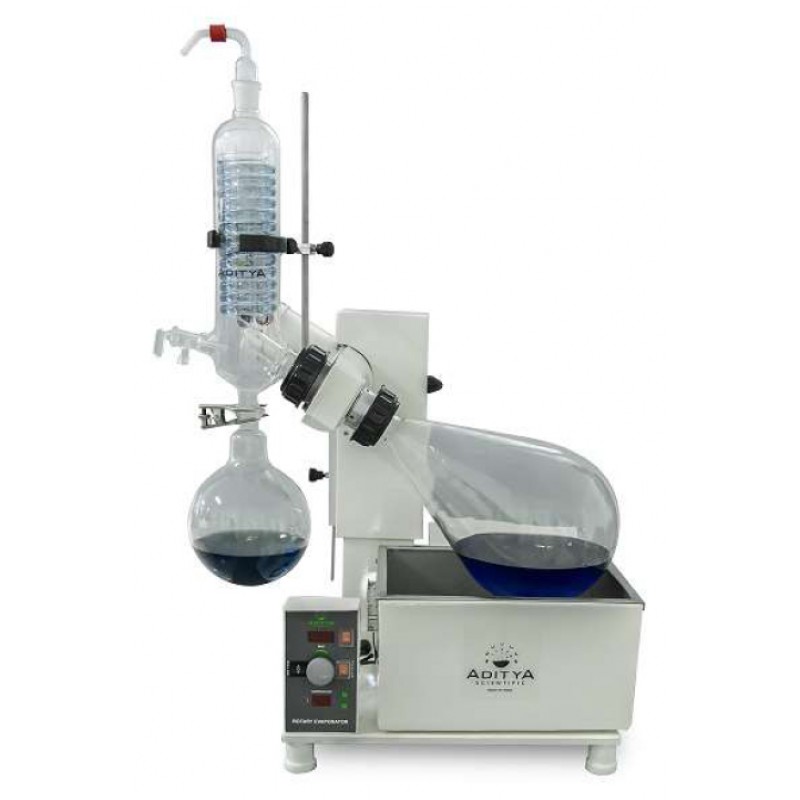

RE-5A ROTARY EVAPORATOR
Product Details:
This model of 5L rotary evaporator is provided with easy auto lift, a simple touch operation to lift flask. With the rotary evaporator you can as well compose your individual modular concept, consisting of rotary evaporator, vacuum controller, vacuum pump and chiller. Distil the solvents reliably with this rotary evaporator. Aditya offers an intelligent solution to process your solvent evaporation easy and safely. Our vacuum distillation system makes evaporating easy for you and allows you to concentrate on your research.
Features: -
- Comes with an integrated Combo-Clip
- Equipped with an LED rotation speed setting
- Comes with an electronic speed control rotation drive
- Equipped with a vapor tube that can be easily removed for cleaning
- Comes with a safety protection switch to avoid overheating
- Has a flexible bath position
- Sealing Ring (Vacuum Seal): Graphite filled PTFE
- SS316 heating bath
- Automatic lift type
- Equipped with secondary protection cut off switch
- Has a flexible bath position
- Sealing Ring (Vacuum Seal): Graphite filled PTFE
- SS316 heating bath
- Automatic lift type
- Equipped with secondary protection cut off switch
Control Unit | ||
01 | Operating Voltage (control unit) | 230 V 50/60 Hz |
02 | Vacuum valve (system) | Yes |
03 | Aerating valve (system) | Yes |
04 | Vacuum sensor | Yes |
05 | Automatic vacuum control mode | Yes |
06 | Vapor temperature | Yes |
Body | ||
01 | Dimensions (LxDxH) | 1400x900x1250 [Approx. Size] |
02 | Reflux system | Yes |
03 | Condenser Cooling Area | 1.2 sqm |
04 | Distillate flask | 50L X 1 No. |
05 | Receiver Flask | 20L X 1 No. |
06 | Flask neck | Large core diameter (standard 120 mm) |
Motor unit | ||
01 | Rotating Speed | 60 rpm |
02 | Electronic speed control | Yes |
03 | Electronic load control | Yes |
04 | Temperature safety switch | Yes |
05 | Slow acceleration mode | Yes |
Bath | ||
01 | Operating Voltage (bath) | 440V / Three Phase |
02 | Heating element | 8 KW |
03 | MOC of heating bath | Stainless steel |
04 | Heating Bath | Insulated |
05 | Heating Bath temp Range | 20-100°C (option 20-160°C) |
06 | Over temperature limiter (heating element) | Yes |
07 | Adjustable over temperature thermostat) | Yes |
08 | Electronic temperature thermostat | Yes |
Sealing system | ||
01 | Sealing system vacuum stability | Ultimate vacuum (system empty) better than 1 mbar |
02 | Life expectancy (sealing system) | Approx. 20,000 running hours. |
03 | Warranty (sealing system) | 3 years |
