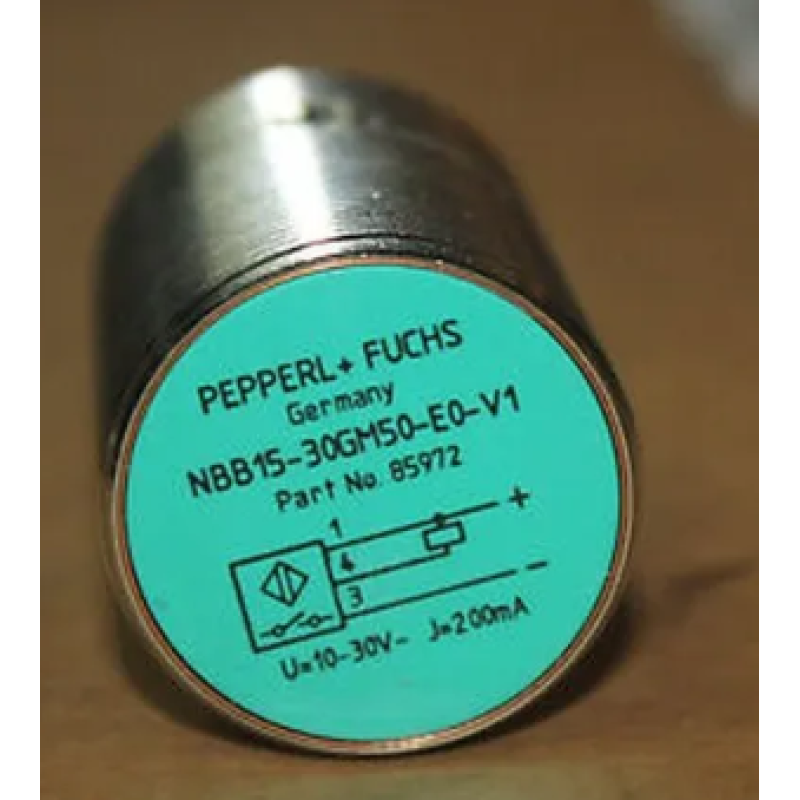

Proximity Sensor
Product Details:
Brand | Pepperl Fuchs |
Model Name/Number | NBB15-30GM50-E0-V1 |
Sensor Type | Inductive sensor |
Material | Stainless Steel |
Connection Type | PVC Cable, 2 meter |
Output Type | PNP |
Switching Frequency | Up to 800 Hz |
Installation Type | Flush |
Switching function | Normally open |
Rated operating distance | 5 mm |
Output polarity | DC |
Assured operating distance | 0 to 4.05 mm |
Reduction factor | 0.3 |
Operating voltage | 10 to 30V |
Hysteresis | Typ. 5% |
Reverse polarity protection | Reverse polarity protected |
Short-circuit protection | Pulsing |
Voltage drop | <3V |
Operating current | 0 to 200 mA |
No-load supply current | <20 mA |
MTTF | 1740 A |
Mission Time | 20 A |
EAC conformity | TR CU 020/2011 |
Ambient temperature | -25 to 70 DegC |
Housing material | Brass, nickel-plated |
Degree of protection | IP67 |
Proximity Sensor
- Views: 50
- Vendor: Vigital India
- Vendor Type: Manufacturer, Supplier
- Product Code: NBB15-30GM50-E0-V1
- Availability: In Stock
- ₹0
