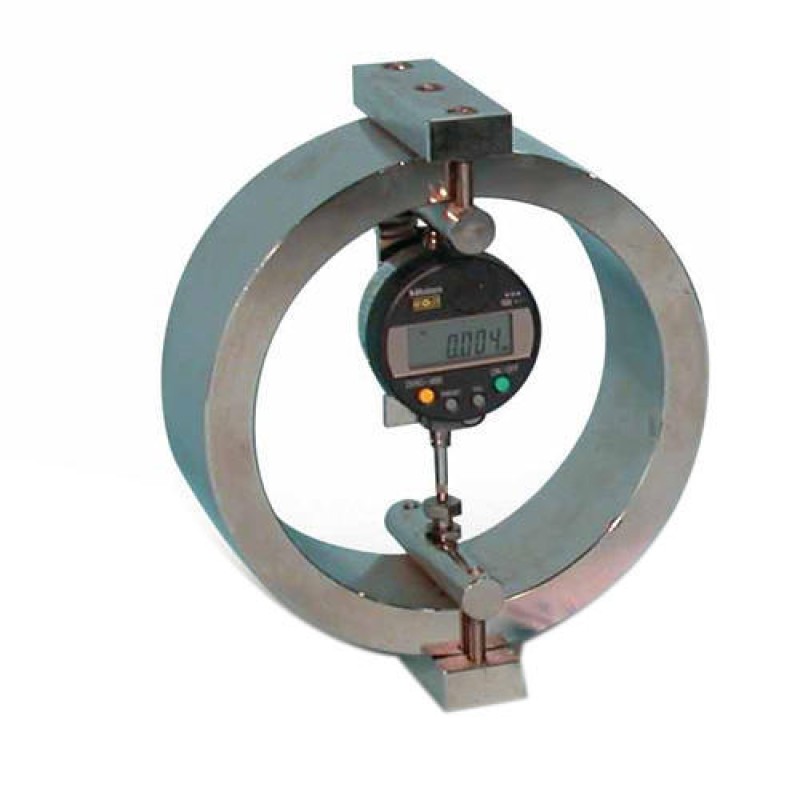

Proving Rings
Product Details:
Specification :
The Proving Rings are made of special steel, carefully forged to provide high and stable accuracy, dependability and repeatability. The dial gauge and anvil are mounted on U-brackets clamped to the ring body by set screws. The indicator has a sensitivity of 0.002mm/ div and the deflection is directly proportional to the applied load. The rings are supplied complete with the dial gauge and Works Calibration Chart, individually packed in polished wooden boxes. NPL (India) / NCCBM Calibration Certificates can also be arranged for any proving ring at an additional cost. Separate Pair of Loading Pads is provided to suit each proving ring.
Cat No. & Name | Capacity |
AT-078 (a): Proving Ring | 25kgf to 100kgf (1kN). |
AT-078 (b): Proving Ring | 200kgf (2kN). |
AT-078 (c): Proving Ring | 250kgf (2.5kN). |
AT-078 (d): Proving Ring | 1000kgf (10kN). |
AT-078 (e): Proving Ring | 2000kgf (20kN). |
AT-078 (f): Proving Ring | 2500kgf (25kN). |
AT-078 (g): Proving Ring | 3000kgf (30kN). |
AT-078 (h): Proving Ring | 5000kgf (50kN). |
AT-078 (i): Proving Ring | 100kN (10 Tons). |
AT-078 (j): Proving Ring | 200kN (20 Tons). |
AT-078 (k): Proving Ring | 500kN (50 Tons). |
AT-078 (l): Proving Ring | 1000kN (100 Tons). |
AT-078 (m): Proving Ring | 2000kN (200 Tons). |
