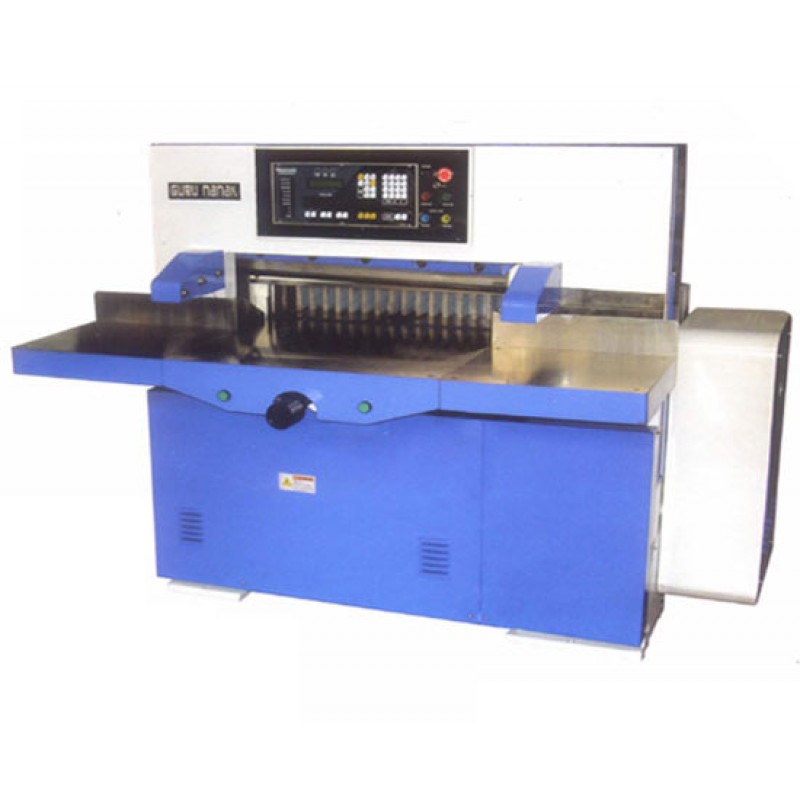

Programmable Paper Cutting Machine
Product Details:
- Hydraulic Clamping can be adjusted for various pressures to suit different kinds of Jobs.
- Electro-Magnetic Clutch System.
- Power operated back gauge for forward and backward movement.
- Air Cushion table for smooth movement of the job.
- Laser Light Beam falls on the paper to be cut without lowering the clamp to ensure proper cutting.
- Storage of 99 programs with 99 cuts.
Machine Size
26″(660mm)
33″(838mm)
36″(920mm)
43″(1092mm)
Maximum Cutting Width
26″(660mm)
33″(838mm)
36″(920mm)
43″(1092mm)
Minimum Cutting Width
5/8″(16mm)
3/4″(20mm)
7/8″(22mm)
1″(25mm)
Maximum Cutting Height
4″(100mm)
41/2″(120mm)
41/2″(120mm)
5″(130mm)
Power Required
3 k.w.
4.4 K.w.
4.4 K.w.
4.4 K.w.
Knife Thickness
3/8″
3/8″
3/8″
1/2″
Table Height
35″
35″
35″
35″
Clamp Pressure (max.)
2000 kgs
2500 kgs
3000 kgs
3500 kgs
Clamp Pressure (min.)
400 Kgs.
425 Kgs.
450 Kgs.
450 K
